ILC Bench Top 30/20 BTS
The versatile stripping solution ILC Bench Top is designed for demanding applications, complex wire/cable constructions, and optimized for outer diameters ranging from 8 to 20 mm.
Processing a wide variety of wires
The high-power, stable infrared laser is capable of processing a wide range of insulation materials, including coaxial cable dielectric and multilayer composite outer jackets.
Simple set up thanks to configuration software and QR codes
EasyCutting Config software simplifies setting adjustments and enables the creation of single-cut or multi-step programs. QR codes facilitate quick program transfer.
Special features for enhanced productivity

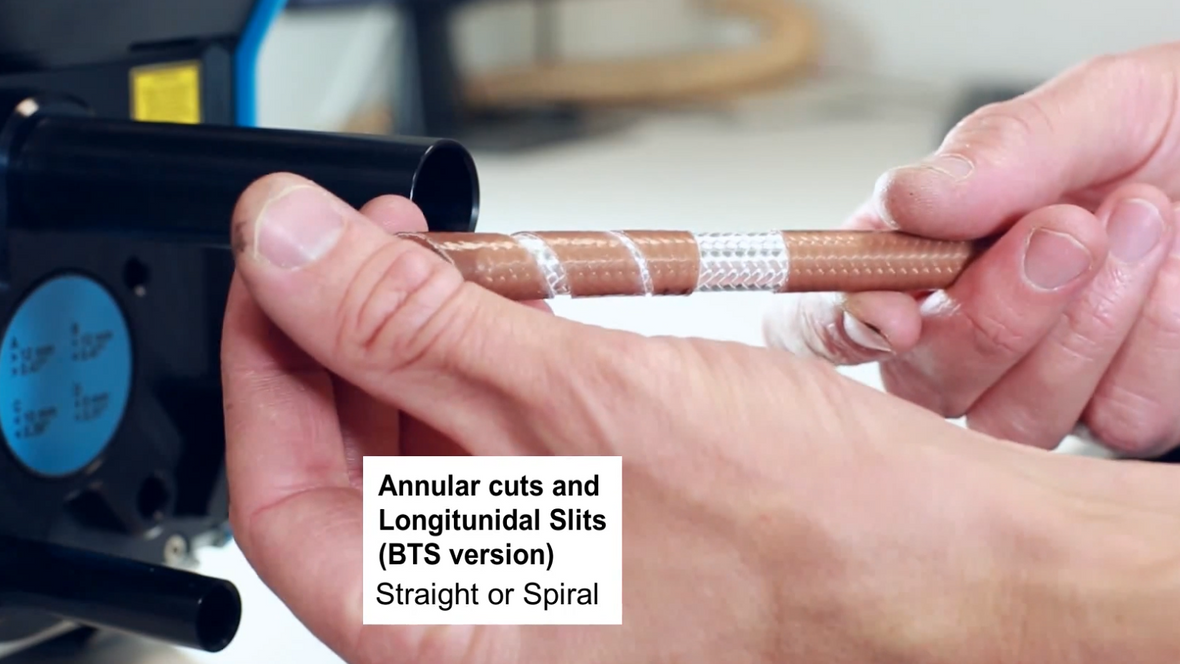

The longitudinal slit feature on the BTS version facilitates insulation removal on challenging and complex wires and cables. The ILC is also capable of creating window strips.
Low maintenance and easy cleaning
Maintenance is limited to regular cleaning operations. All necessary tools are provided and stored in the integrated maintenance tray.
Easy to program and error-free to use
Once loaded into the ILC Bench Top unit, the programs can be selected manually or by scanning a barcode. Stripping starts automatically after the wire insertion.
| Specification name | Specification value |
|---|---|
| Ambient temperature | 15 - 35 °C |
| Laser security | Class 1 laser: can be used on open workshop (no laser safety goggles required) |
| Laser | 30-watt infrared CO2 laser |
| Insertion length (distance between entry point and laser cut) | 21 mm |
| Insertion length (distance between entry point and laser cut) | 0.83 in |
| Strip length min. | 0 mm |
