Laser wire stripping for aerospace
Perfect for hard-to-process wires such as twisted shielded and non-round cables, thanks to the innovative rotation cut technique utilizing three diode laser strips
Laser Stripping

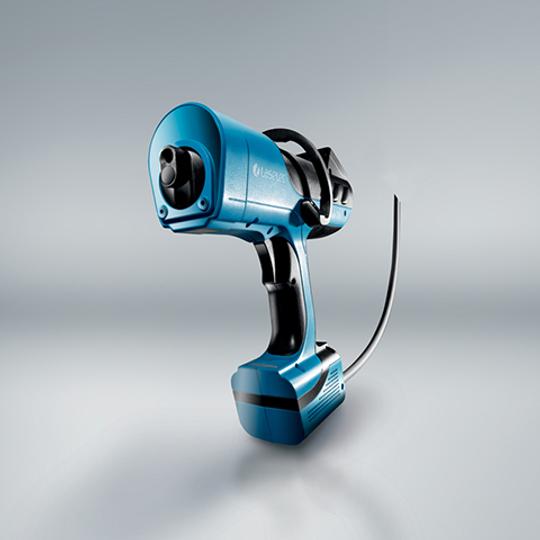

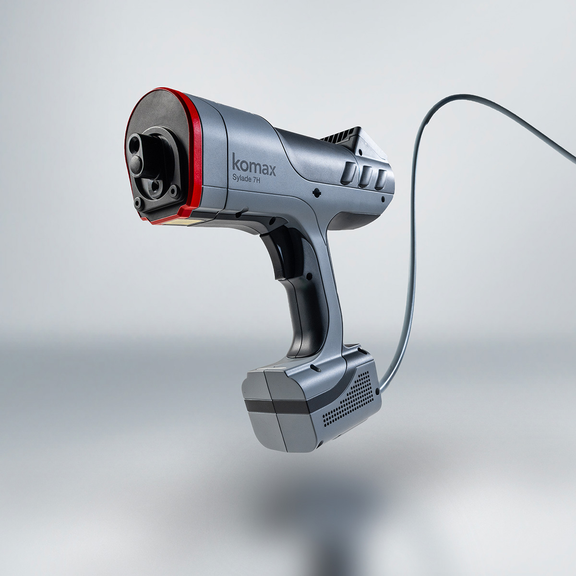

Sylade 7 H
The Sylade 7H is an innovative laser wire stripping system tailored for the Aerospace industry. It offers a superior solution for stripping twisted shielded and non-round wires with a diameter of up to 7mm.
Highlights

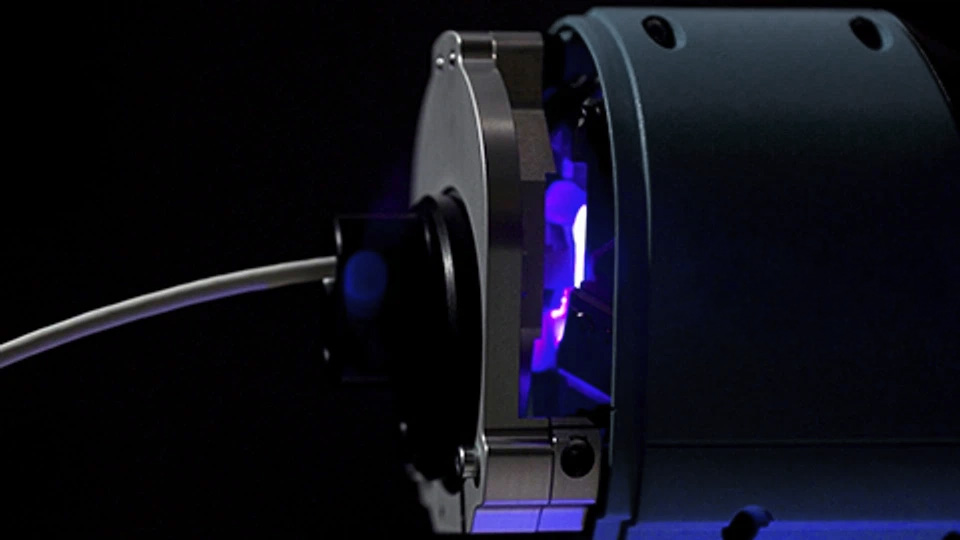

Safe, fast and reliable laser wire stripping
This cutting system provides a high-precision cut of the insulation without risk of damaging the shield or conductor. It guarantees faultless and 100 % repeatable quality.

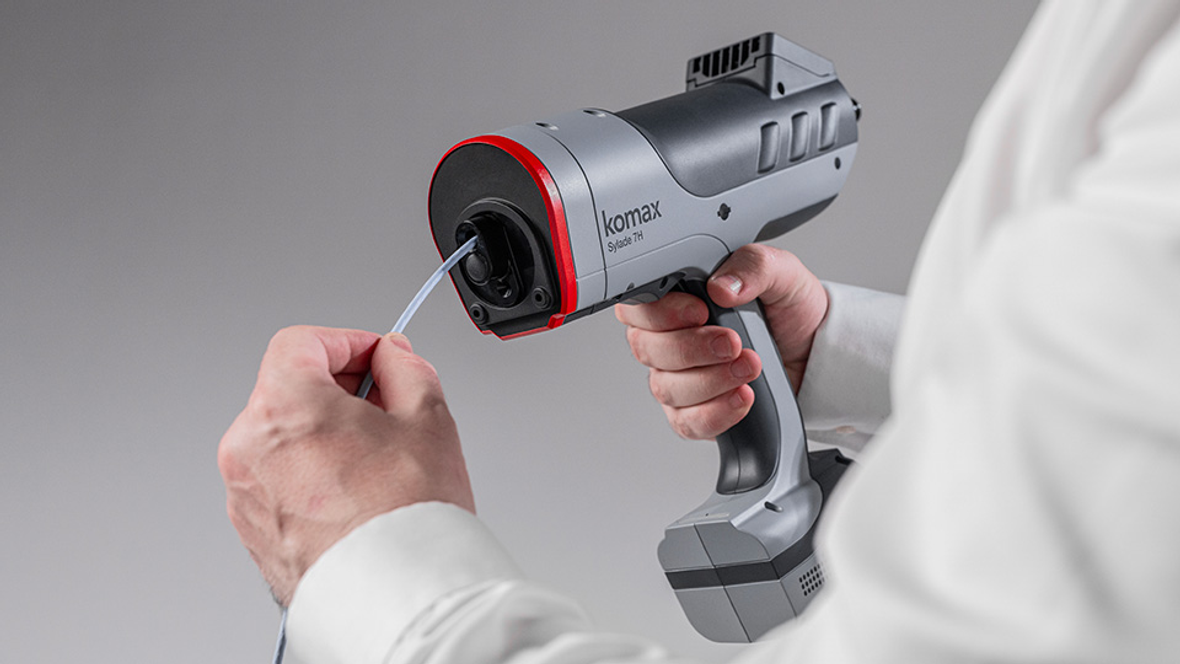

Ergonomic design
The ergonomic handle is designed for use by operators of both right-handed and left-handed orientations. Its trigger allows for effortless cable insertion and cycle activation.

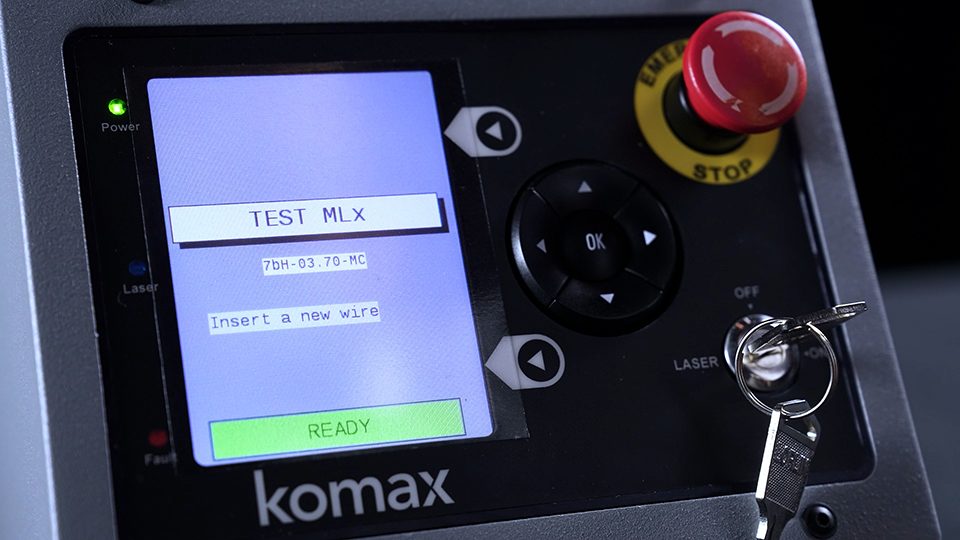

User-friendly interface
Set up is simplified with pre-programmed recipes, optimizing intensity, rotary speed, and number of passes. Automatic diameter detection adjusts cycle time for the same program.

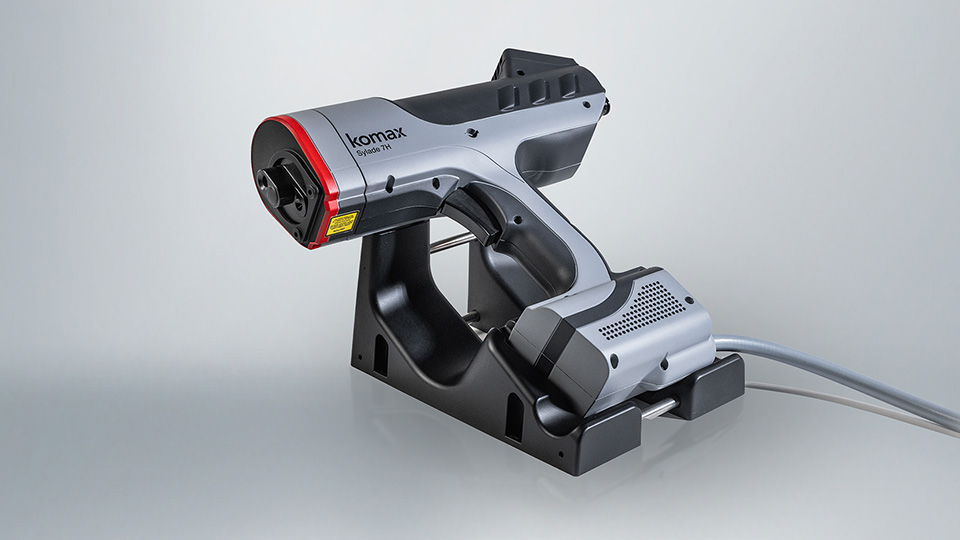

Additional usage through accessories
Optional features are available to enhance usability, such as a sloping holder or a tool balancer for workshop mobility.
Technical data
| Specification name | Specification value |
|---|---|
| Wire outer diameter min. | 1 mm |
| Wire outer diameter max. | 7 mm |
| Strip length max. | 200 mm |
| Insulation material | PTFE, Polyimide, ETFE, X-ETFE, FEP, etc. |
| Noise level | <65 dB |
| Electrical connection | 100-230 VAC / 50-60 Hz |
Processing capabilities
Full stripping
Partial stripping
Out-of-round cable processing
Downloads
- Sylade 7H
PDF | English | 1.6 MB
- Sylade 7H
PDF | French | 1.6 MB
- Sylade 7 H
PDF | Chinese | 1.5 MB
- Sylade 7H
PDF | Japanese | 0.7 MB
Related products
Browse alternatives

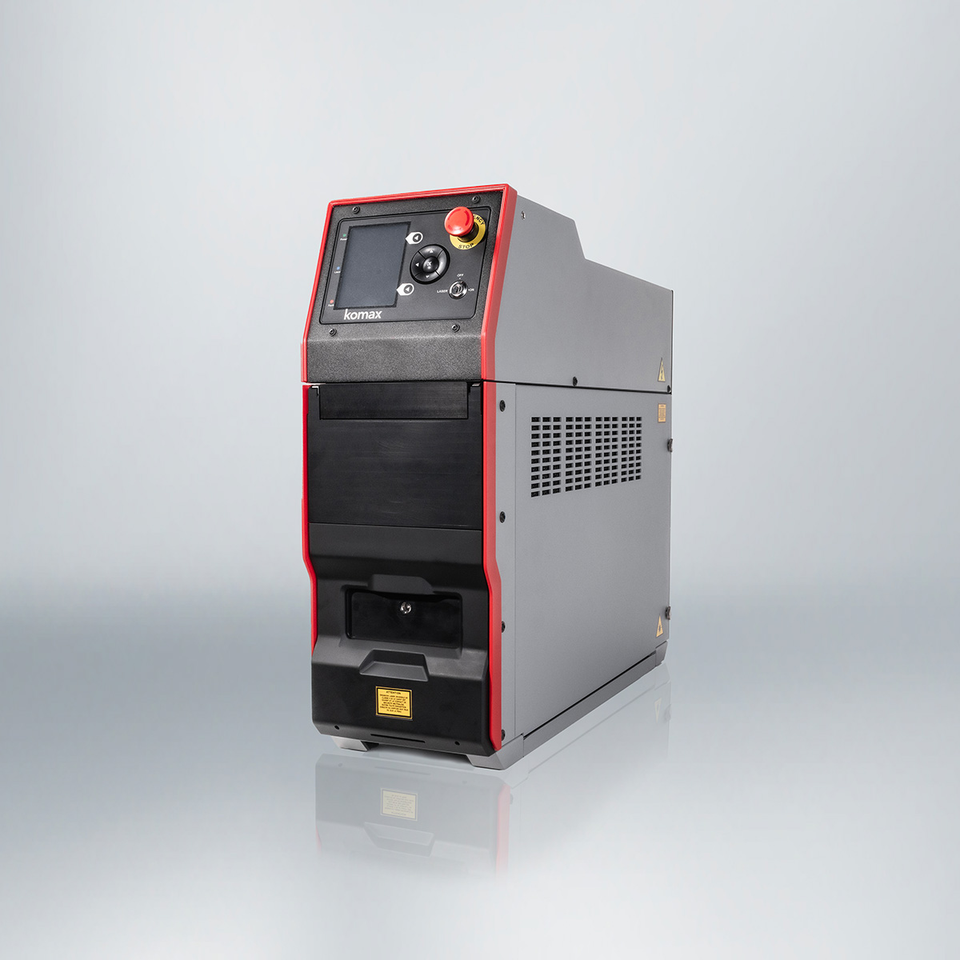

Laser StrippingILC Bench Top 20/8 BTS
The ILC Bench Top is a cutting-edge laser wire stripping system designed for high-demanding applications, complex wire and cable constructions, and out-of-round wires or cables.

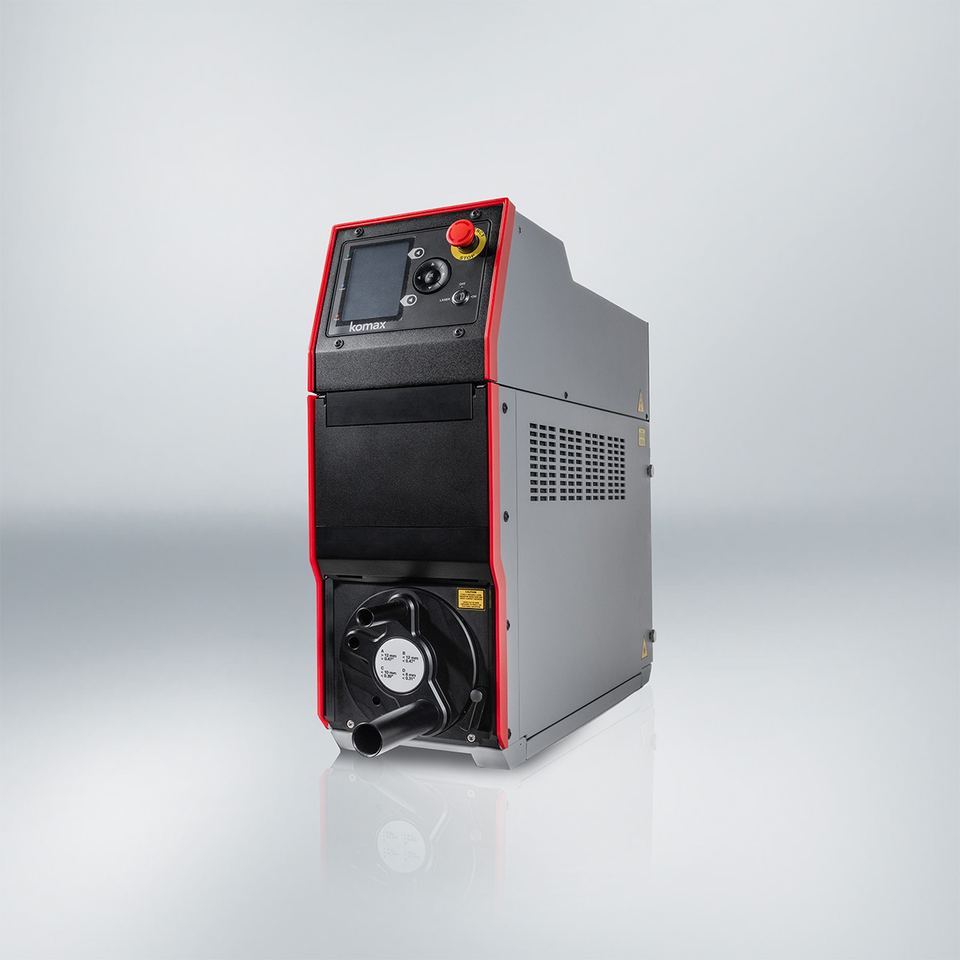

Laser StrippingILC Bench Top 30/20 BTS
