Wire Processing

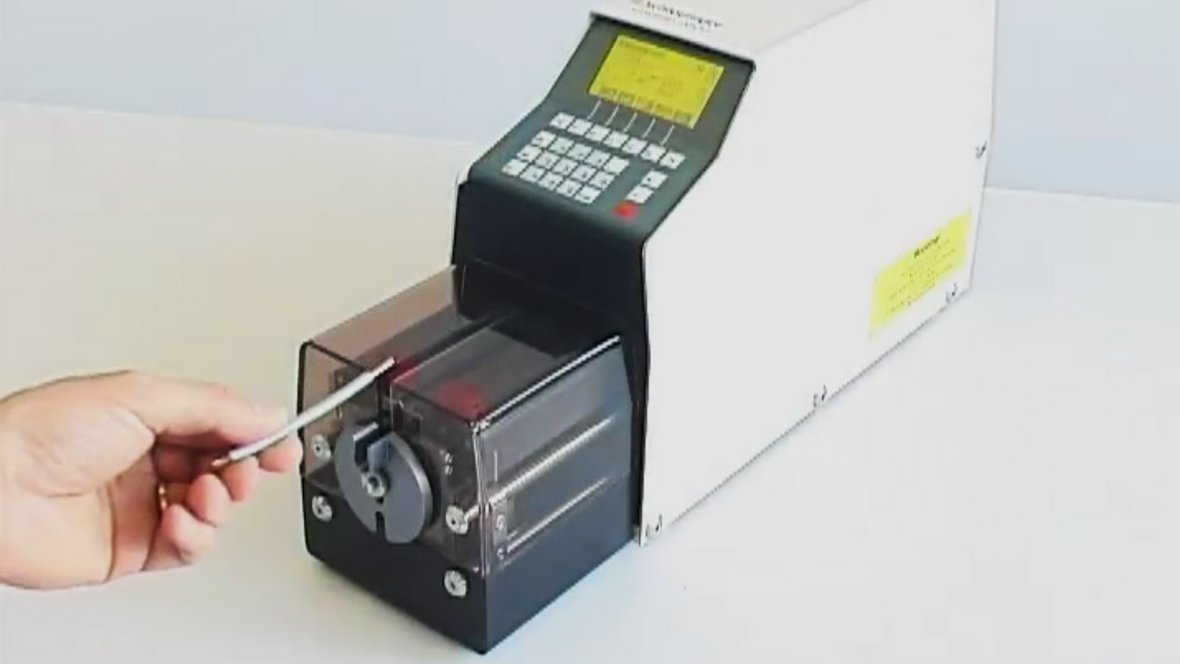

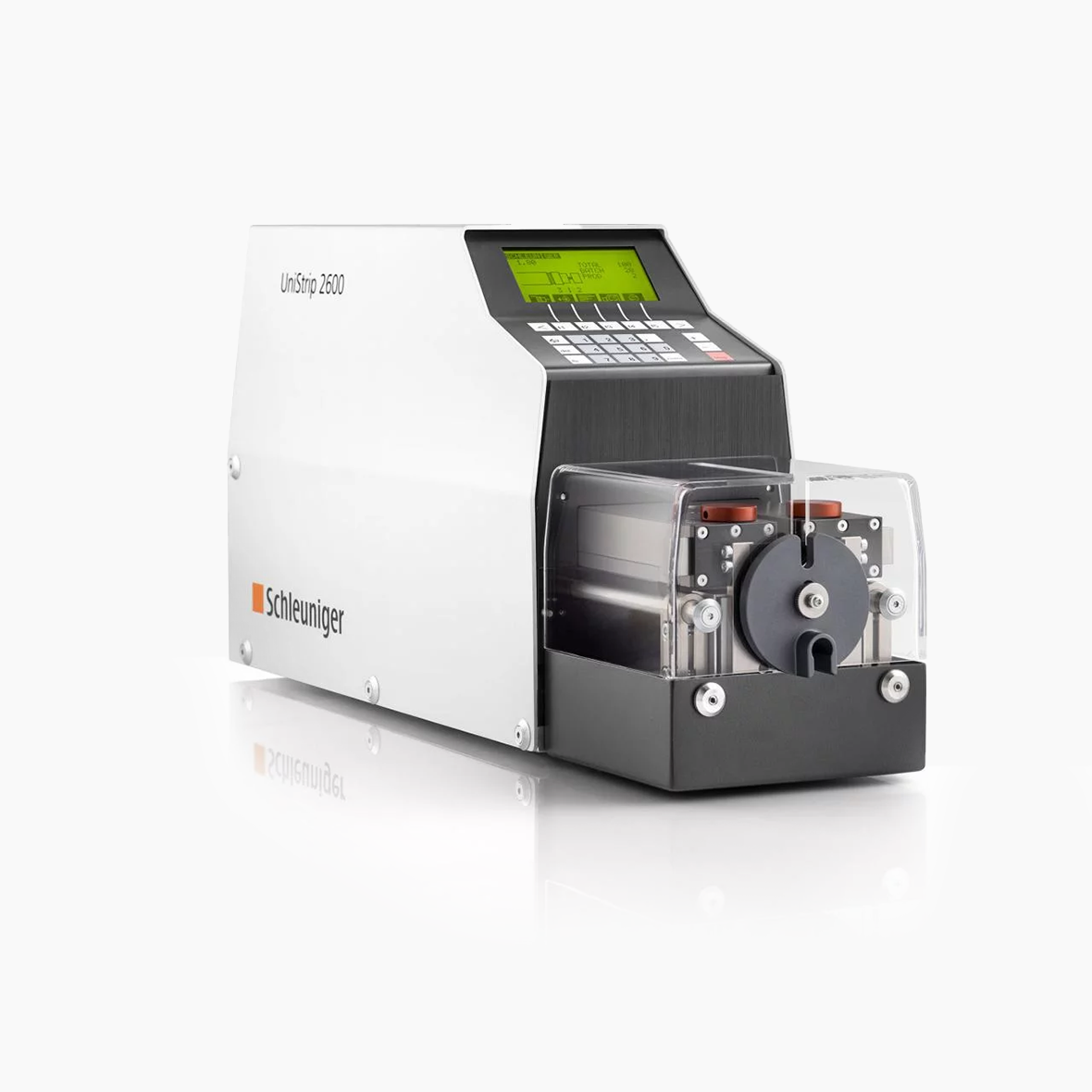

UniStrip 2600
The UniStrip 2600 strips a wide variety of wire and cable types, including discrete wire from 0.03 – 16 mm² (32 - 6 AWG), power cords, multiconductor cables, flat cables, etc.
Highlights
Technical data
| Specification name | Specification value |
|---|---|
| Options | IquanaTM Wire Processing Software, Smart StripTM Technology, Air jet, foot pedal, special blades and clamping |
| Wire outer diameter min. | 0.25 mm |
| Wire outer diameter max. | 9 mm |
| Number of entries in the article library | 1,000 cables |
| Strip length min. | 0.1 mm |
| Strip length max. | 80 mm |
Processing capabilities
Cutting to length
Full stripping
Partial stripping
Multistep stripping
User defined blades
Flat cable processing
