Process Modules

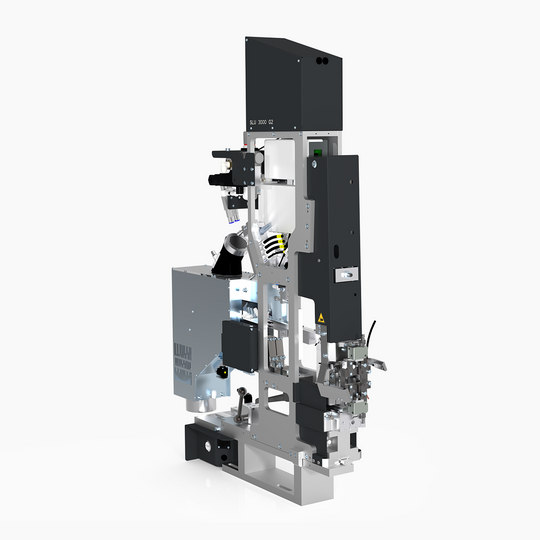

SLU 3000 G2
The compact SLU 3000 G2 sealing station applies weather seals (up to 16 mm in diameter and length) to wire ends on fully automated Komax machines, such as the Komax Alpha series.
Technical data
| Specification name | Specification value |
|---|---|
| Sound pressure level | ≤ 70 LpA |
| Power supply input | 24Vdc / 1.5A |
| Power source | Electric - Pneumatic |
| CE marking | Yes |
| CE conformity | The product fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. It carries a CE mark. |
| Ambient temperature max. | 40 °C |
