HV Test Tables & Consoles

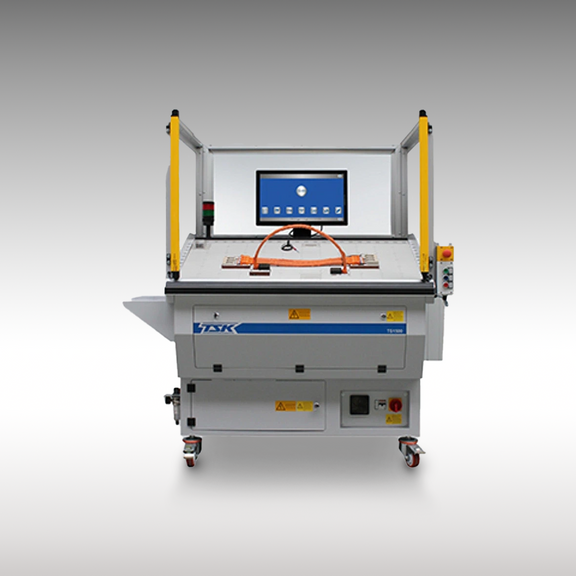

TS1500-HV
The TS1500-HV system has been specially developed for testing of high-voltage and data sensor cables. It conforms to international standards and will be used in the cable assembly.
Technical data
7 Variants
| Specification name | Specification value |
|---|---|
| Dimensions/height min. | 1020 mm |
| Dimensions/height max. | 1070 mm |
| Dimensions/width min. | 1350 mm |
| Dimensions/width max. | 1740 mm |
| Depth max. | 1060 mm |
| Total weight, without test adapter (modules) approx. | 250 kg |
