High-Speed Precision Testing
Rapid solid-state circuitry delivers instant low and high-voltage checks. You gain faster cycle times and total accuracy, ensuring every product meets your highest quality standards.

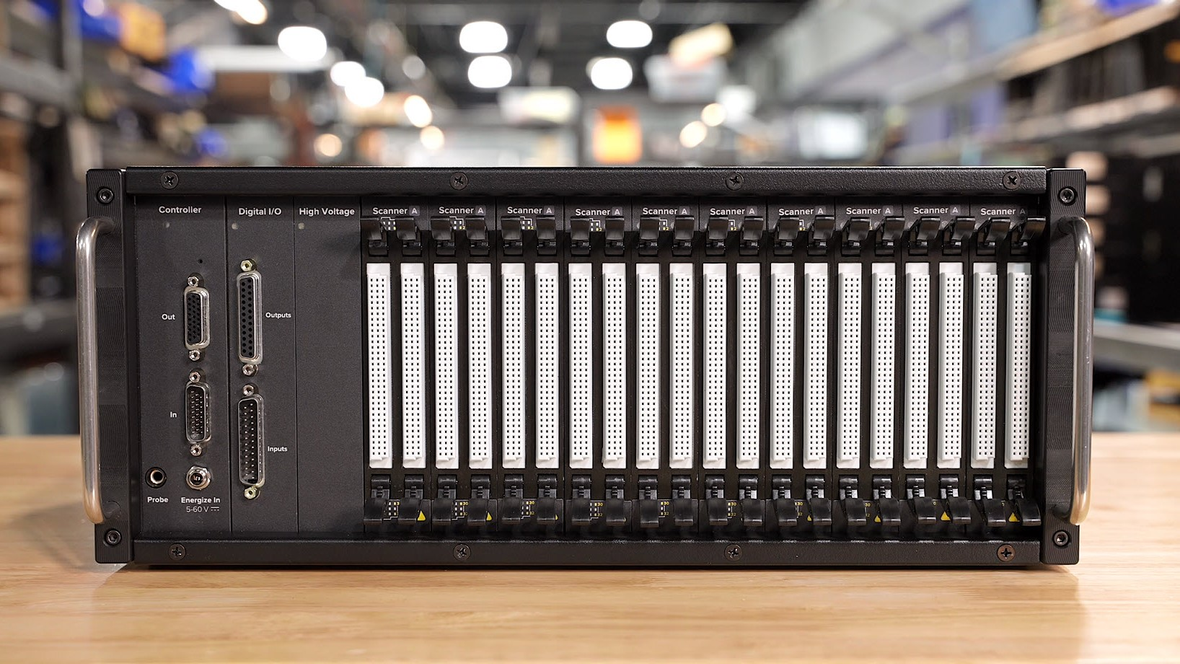

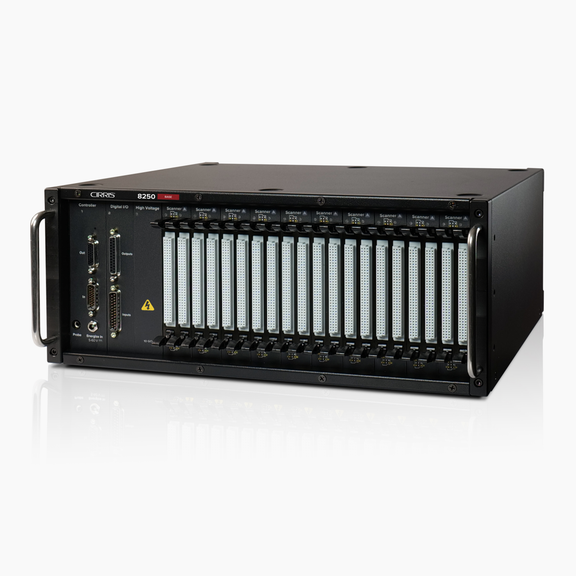

HV Cable & Harness Tester
8250
The Cirris 8250 High Voltage Tester sets a new standard for power and scalability. Test up to 100,000 points with advanced HV/LV precision for aerospace or any other industry with complex assemblies.
Highlights

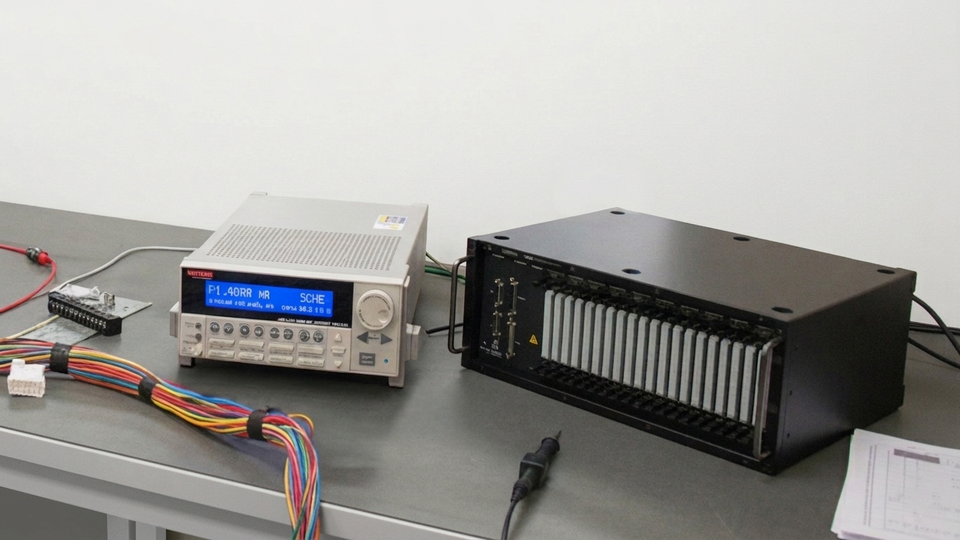

Versatile & Integrated Measurements
Adapt to complex assemblies with test points that sync with external tools. You achieve total testing coverage in one setup, reducing complexity and streamlining your entire workflow.

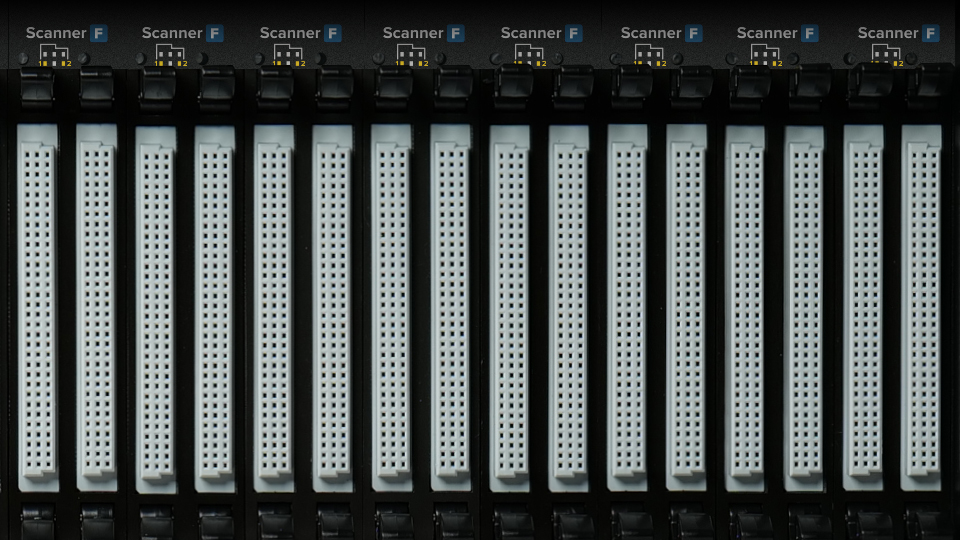

Compact Power-in-One Efficiency
Energize and measure components via one software-controlled module. Save rack space and simplify operations for a leaner, more intuitive testing process.
Seamless Automated Connectivity
Integrate easily with your apps via API and OPC UA. Benefit from a fully connected ecosystem that enables automated workflows and real-time data control at your fingertips.

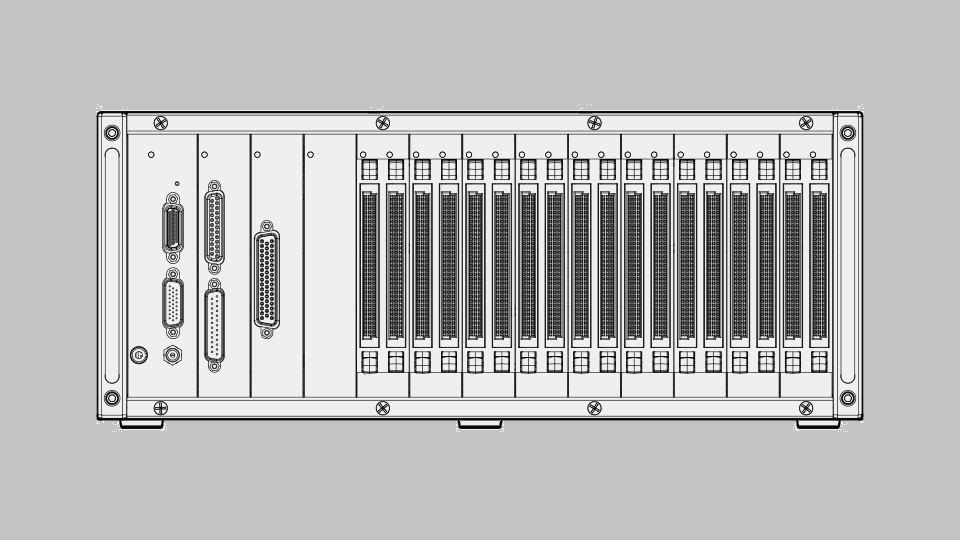

Modular & Scalable Expansion
Distribute test points up to 200 feet or link base units. This future-proof system grows with your production demands and reconfigures easily for any large-scale project.
Technical data
| Specification name | Specification value |
|---|---|
| Dielectric withstand test, HV charge limit | 45 μC |
| Insulation resistance test, voltage max. | 1500 VDC |
| Insulation resistance test, voltage accuracy ± | 5 % |
| Dielectric withstand test, HV energy limit | 35 mJ |
| Dielectric withstand test, AC voltage accuracy ± | 5 % |
| Dielectric withstand test, AC voltage min. | 100 VAC |
