Easy sample clamping thanks to the rotary disc
The rotary disc with 12 different options to clamp samples, is perfect for fixing crimps, ferrules, cable terminals and even splice contacts.
Quality Tools

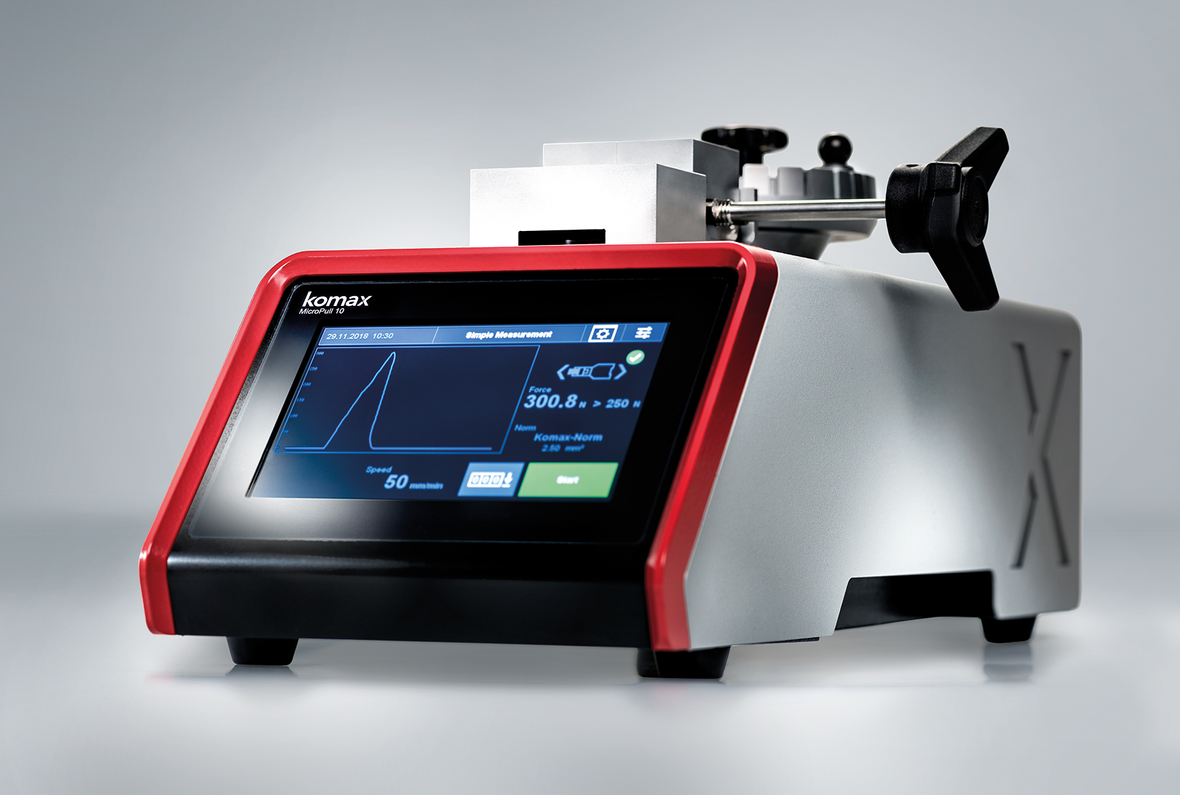

MicroPull 10
The MicroPull 10 is a standalone measurement system that measures pull-out forces ranging from 20 to 1000 N. It offers a variety of different pull-off speeds of up to 100 mm/min.
Highlights

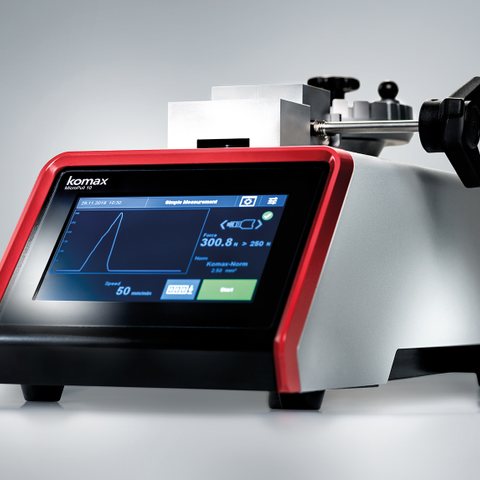

Modern and intuitve touch display with live curve
No training effort is needed to perform a pull-out force measurement. Also a live measurement curve is shown on the display.
Technical data
| Specification name | Specification value |
|---|---|
| Stroke max. | 48 mm |
| Dimensions/height | 120 mm |
| Dimensions/length | 404 mm |
| Dimensions/width | 154 mm |
| Weight | 10.5 kg |
| Resolution 0 .. 20 N | 0.1 N |
