Wire Processing

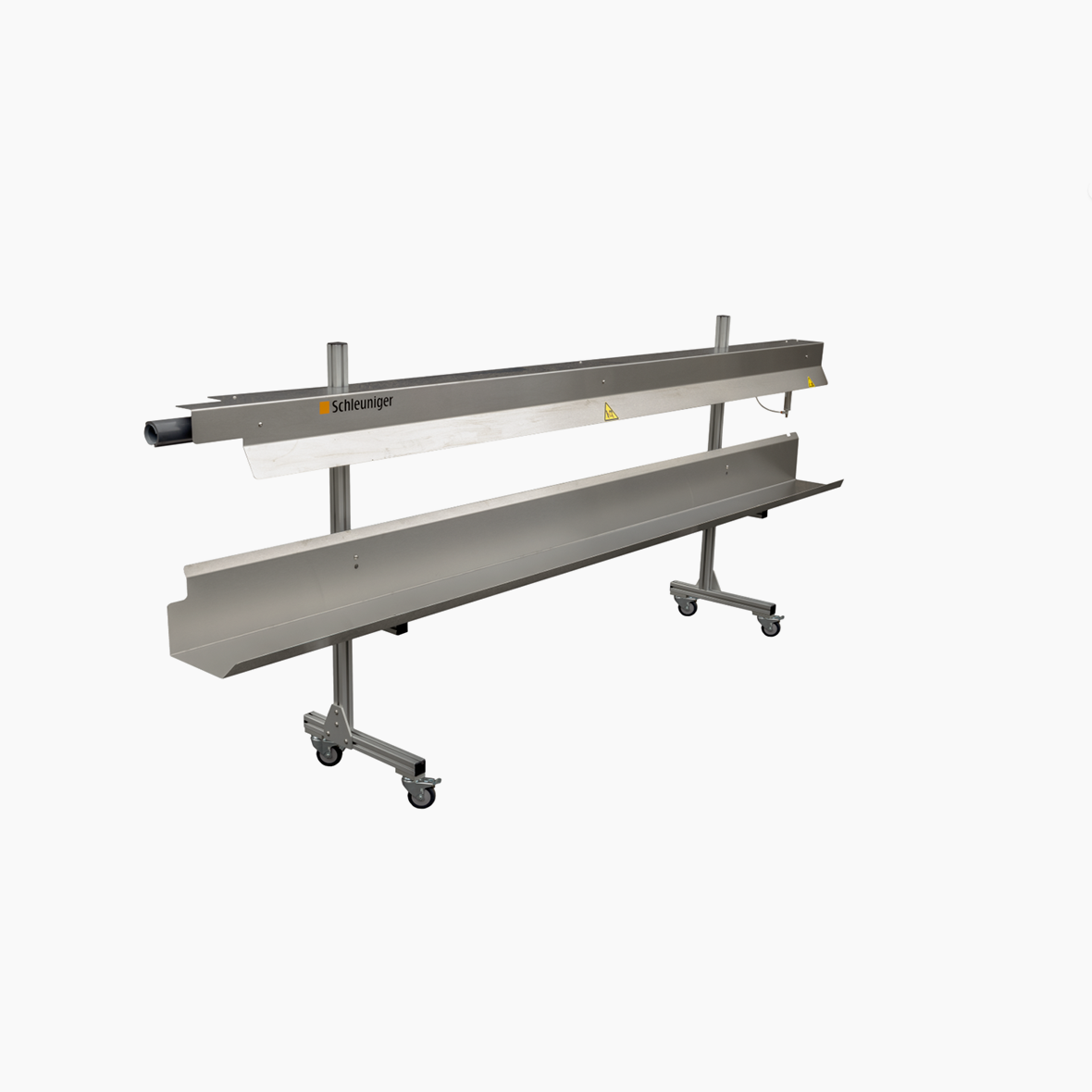

WireStacker 1000
The passive WireStacker 1000 includes a guide channel and a collecting tray for the stacked cables with lengths of up to 3 m (10 ft) and wire cross-sections of 0.34 mm² (22 AWG).
Technical data
| Specification name | Specification value |
|---|---|
| Raw material length | Up to 3,000 mm (120”), longer lengths possible but cable depending |
| Noise level | 75 dB |
| CE conformity | The WireStacker 1000 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
| Height of wire outlet min. | 610 mm |
| Height of wire outlet max. | 1060 mm |
| Wire diameter max. | 25 mm |
Downloads
- WireStacker 1000
PDF | English | 0.2 MB
- WireStacker 1000
PDF | German | 0.1 MB
- WireStacker 1000
PDF | Japanese | 0.4 MB
- WireStacker 1000
PDF | Spanish | 0.4 MB
- WireStacker 1000
PDF | Chinese | 0.2 MB
