Wire Processing

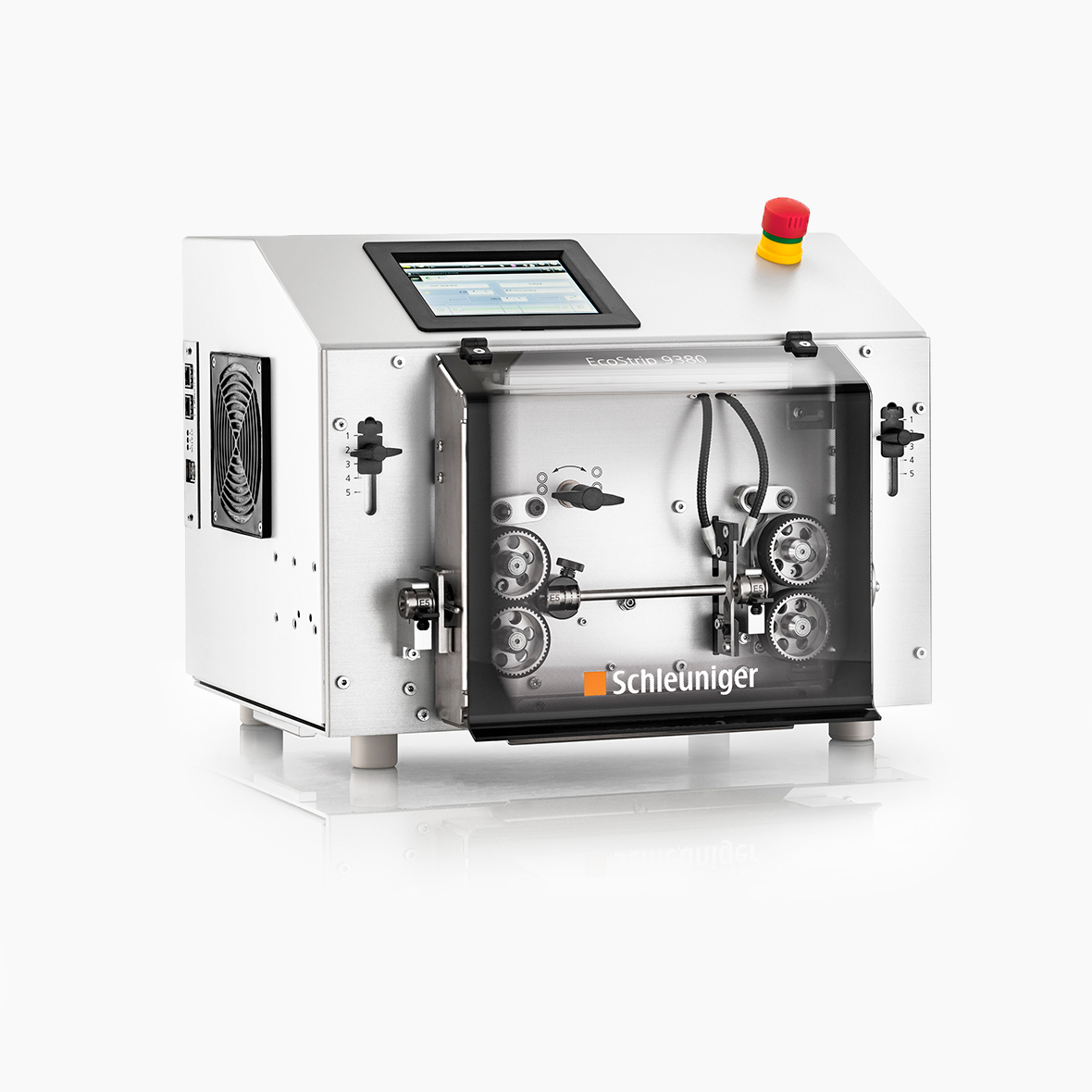

EcoStrip 9380
The entry-level cut and strip machine EcoStrip 9380 processes wires with a diameter of 0.3 mm – 8.0 mm (0.012" – 0.31") and a conductor cross-section of 0.05 – 8 mm² (36 - 8 AWG).
Highlights
Technical data
| Specification name | Specification value |
|---|---|
| Wire cross section | 0.05 - 10 mm² |
| Wire length/standard mode | 46.0 mm (1.81“) - 1,000,000mm (39,370") |
| Wire outer diameter range | 0.012 - 0.31 in |
| Interfaces | Standard: Ethernet for PC, USB Optional: SMI (I/O‘s), prefeeder, wire marker (HS), inkjet printing, stacker / coiler |
| Wire outer diameter min. | 0.3 mm |
| Wire length max. | 1000000 mm |
Processing capabilities
Cutting to length
Full stripping
Partial stripping
Multistep stripping
Center stripping
Flat cable cutting to lenght
