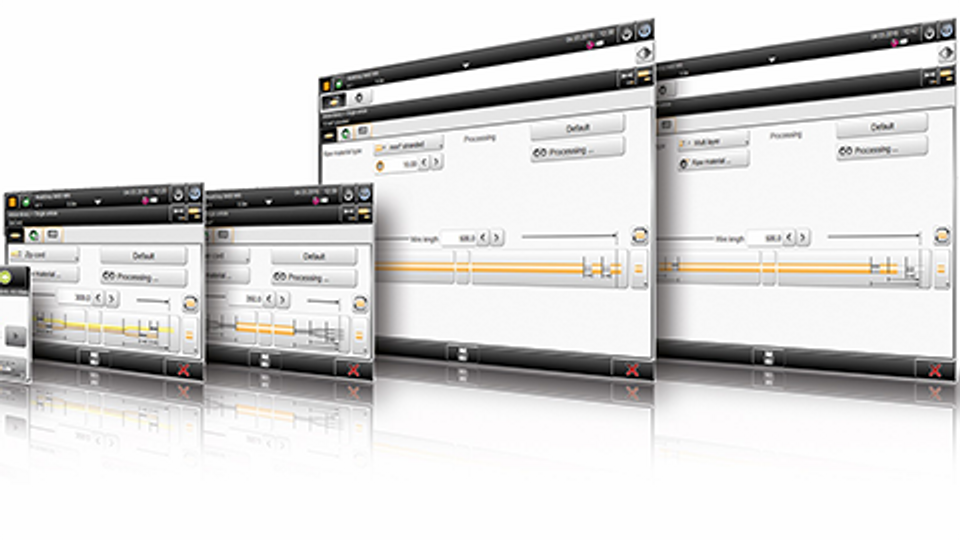

Intuitive S.On Software for Library-Based Programming
The color touchscreen with user-friendly navigation within the S.On Software allows for quick program setup, ensuring efficient processing of wire lists.
Wire Processing

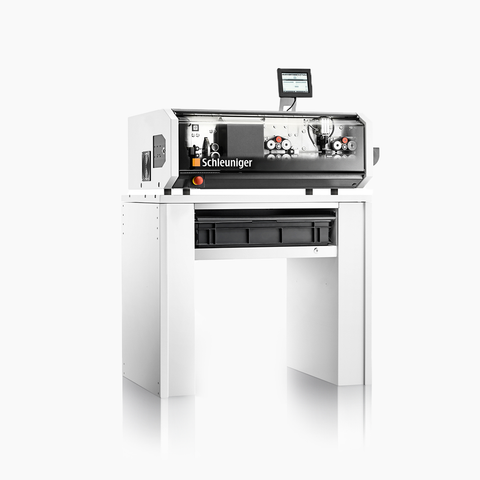

MultiStrip 9480
The MultiStrip 9480 family offers six machine versions with additional options and accessories for wires from 0.5 – 12.5 mm (0.0196 – 0.49") or up to 6.5 mm (0.26") in diameter.
Highlights

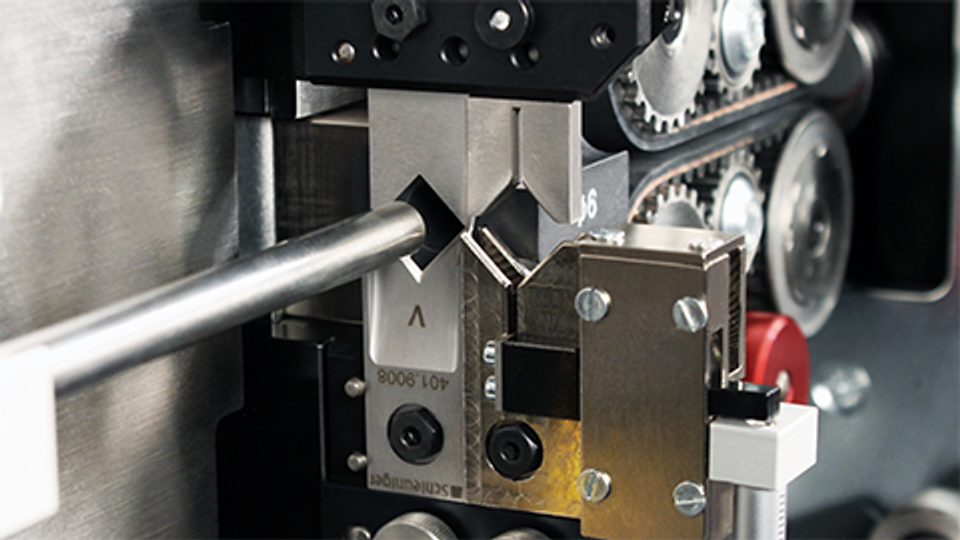

High-Precision Cutting Unit with Schleuniger RX Technology
The cutting unit with Schleuniger RX technology processes different cables with high precision. Each of the six machine versions comes with a specific cutting unit

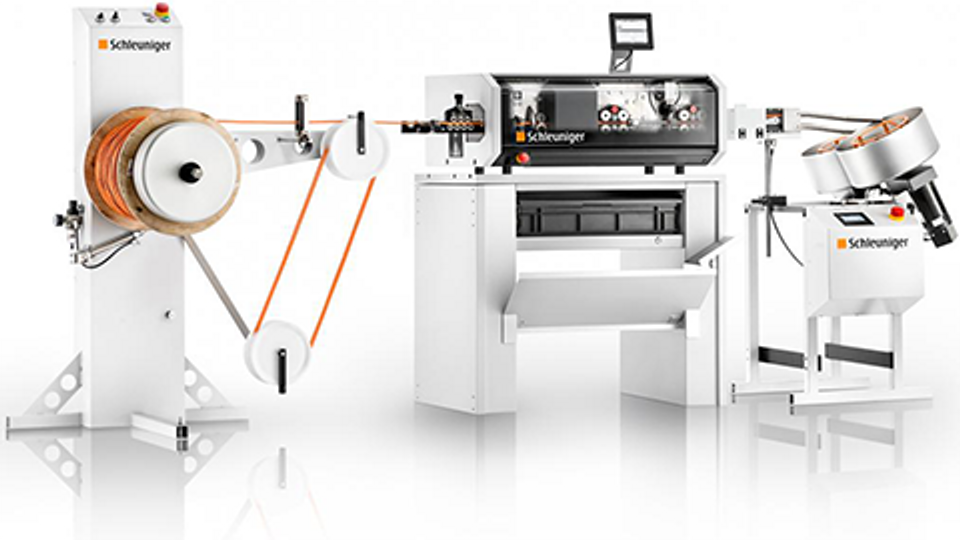

Modular Design for a Wide Range of Accessories and Custom Devices
The MultiStrip 9480 is available in six versions to meet your budget and production needs. It's compatible with prefeeders, marking systems, coilers, stackers, and custom devices.

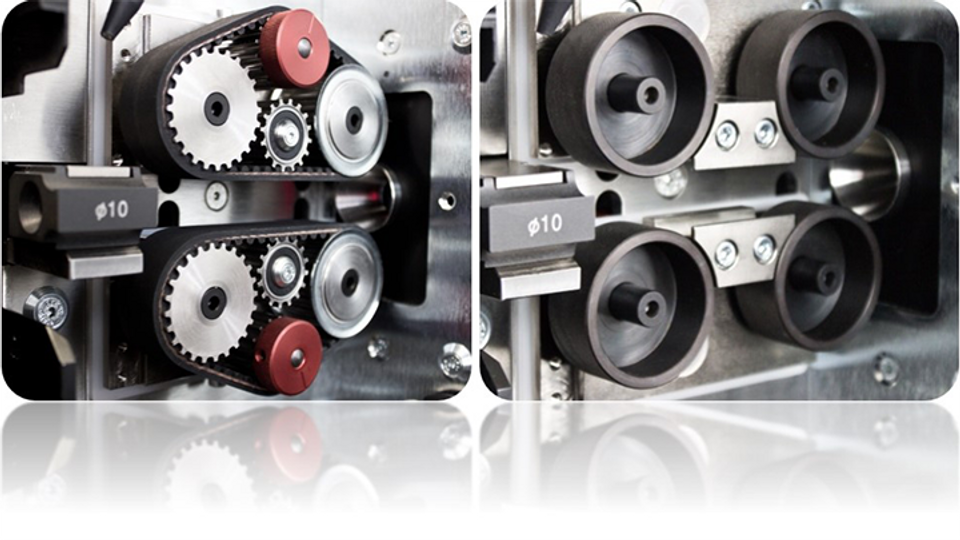

Ensure Safe Processing with Different Feeding Options
Choose a suitable drive for optimal traction and transport precision: either a belt drive with a support pulley or a double roller drive – both with an optional short mode kit.
Technical data
| Specification name | Specification value |
|---|---|
| Wire outer diameter min. | 0.5 mm |
| Wire length/standard mode | 62.5 mm (2.46”) - 1’000'000 mm (39.370”) |
| Wire outer diameter range | 0.032 - 0.49 in |
| Conductor cross section | S/M/MR/RS: 0.25 mm² - 20 mm² (24 - 4 AWG), RSX/RX: Max. 6 mm² (10 AWG), single conductor |
| Conductor cross section, with optional cutter booster | S/M/MR/RS: Max. 25.0 mm² (4 AWG), depending on cable type, RSX/RX: Max. 6 mm² (10 AWG), single conductor |
| Interfaces | Standard: 2 x USB, 2 x Ethernet, prefeed, hotstamp and postfeed interfaces 5 additional SMI’s (Schleuniger Machine Interface) for up to 2 marking systems, different peripheral devices, and emergency stop circuits. |
Processing capabilities
Cutting to length
Slitting
Full stripping
Partial stripping
Multistep stripping
Center stripping
