Micrographs & Microscopy
Micrographs & MicroscopyMicroLab 10
The MicroLab 10 is a compact micrograph laboratory in a case system that measures and evaluates small quantities of B crimps in the 0.5 - 2.5mm processing range.
Micrographs & MicroscopyMicroLab 30
The MicroLab 30 mobile micrograph laboratory creates micrographs for medium to large quantities of B-crimps, MIL-crimps and hex-crimps with a diameter of 0.5 to 10.0 mm.
Micrographs & MicroscopyKomax 345
The high-quality, digital Komax 345 microscope enables the control of stripping and crimping quality, even with miniature terminals and the smallest wire cross sections.
Micrographs & MicroscopySmartOptic
The SmartOptic image acquisition module offers high-quality color images and can be operated independently of the micrograph laboratory in conjunction with SmartVision on a PC.
Micrographs & MicroscopySmartVision
The SmartVision software can be used to evaluate micrographs of all standard crimp connections such as B crimp and MIL crimp as well as oval crimp or arbor crimp.
Micrographs & MicroscopyMicroLab 45
The MicroLab 45 is the best micrograph labratory for high level quality checks. With the fully automatic transport system, it quickly meassures and evaluates micrograph pictures.
Micrographs & MicroscopyMicroLab 11
The MicroLab 11 is a portable all-in-one micrograph laboratory solution with integrated automatic cutting and semi-automatic grinding functions.
Micrographs & MicroscopyMicroLab 20
The MicroLab 20 is a fast and reliable micrograph laboratory solution for quick analysis on wires ranging from 0.05 mm² to 80 mm², with customizable reporting options.

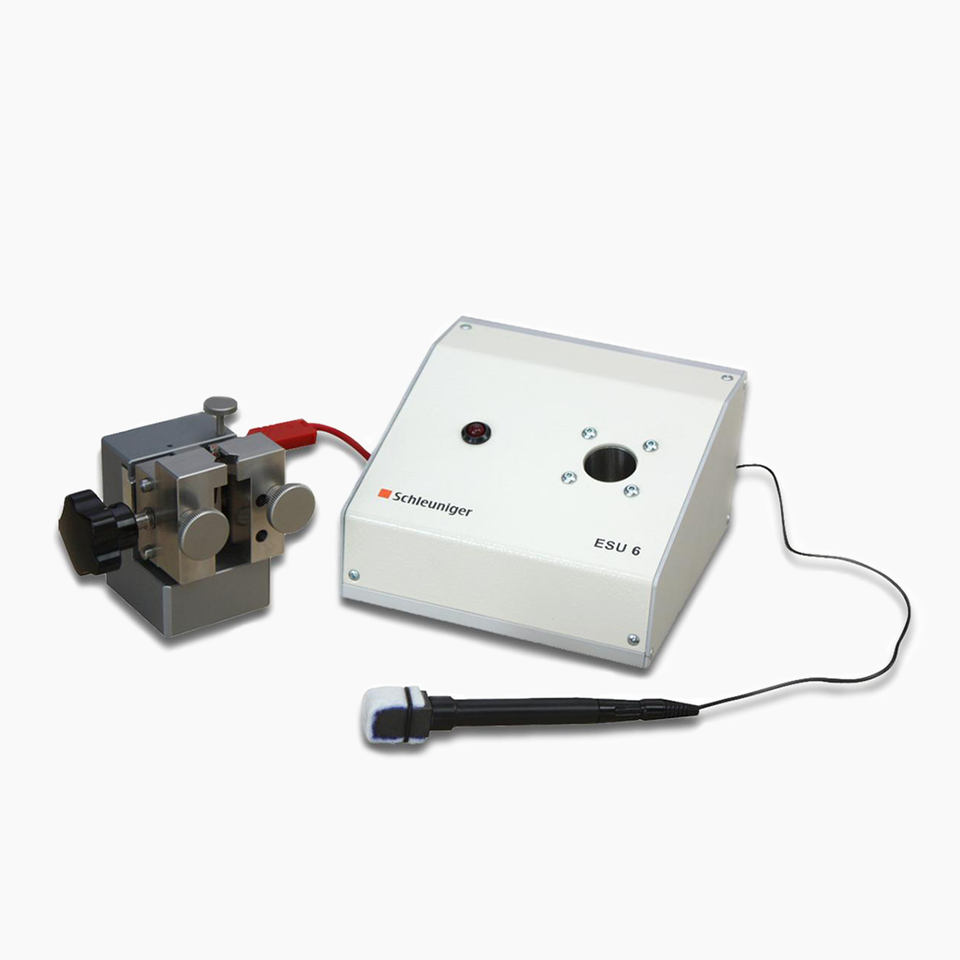

Micrographs & MicroscopyElectrolyteStaining Unit 6
The ESU 6 Electrolyte Staining Unit is a component of the MicroGraph System, used for creating high-quality cross-sectional images of crimp connections and other samples.
Micrographs & MicroscopyMacroZoom Unit 1.3
The MacroZoom Unit 1.3 is a component of the MicroGraph System and allows the analysis of pre-cut cross-section samples in real-time using precise optics and powerful software.
Micrographs & MicroscopyMicroGraph System
The modular MicroGraph System creates high-quality crimp cross-sectional images with the SawPolish and ElectrolyteStaining Unit as well as the MacroZoom Unit 1.3 fast.

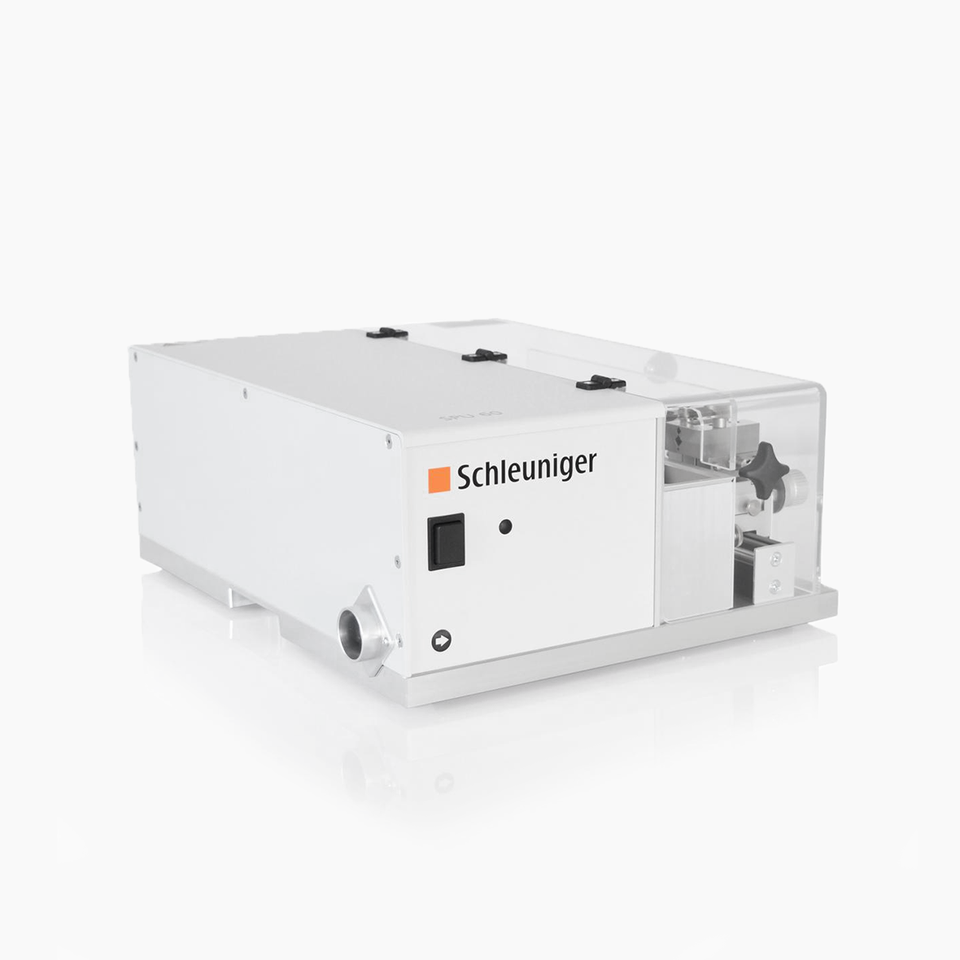

Micrographs & MicroscopySawPolish Unit
The SawPolish Unit is a component of the MicroGraph System, enabling users to saw and polish samples quickly and cleanly using a combined sawing-polishing process.
Micrographs & MicroscopySawInspect System 6
The compact SawInspect System 6 analyzes crimp cross-sections by integrating the SawPolish Unit 6, the MacroZoom Unit 1.3, and the ElectrolyteStaining Unit 6 into one system.
