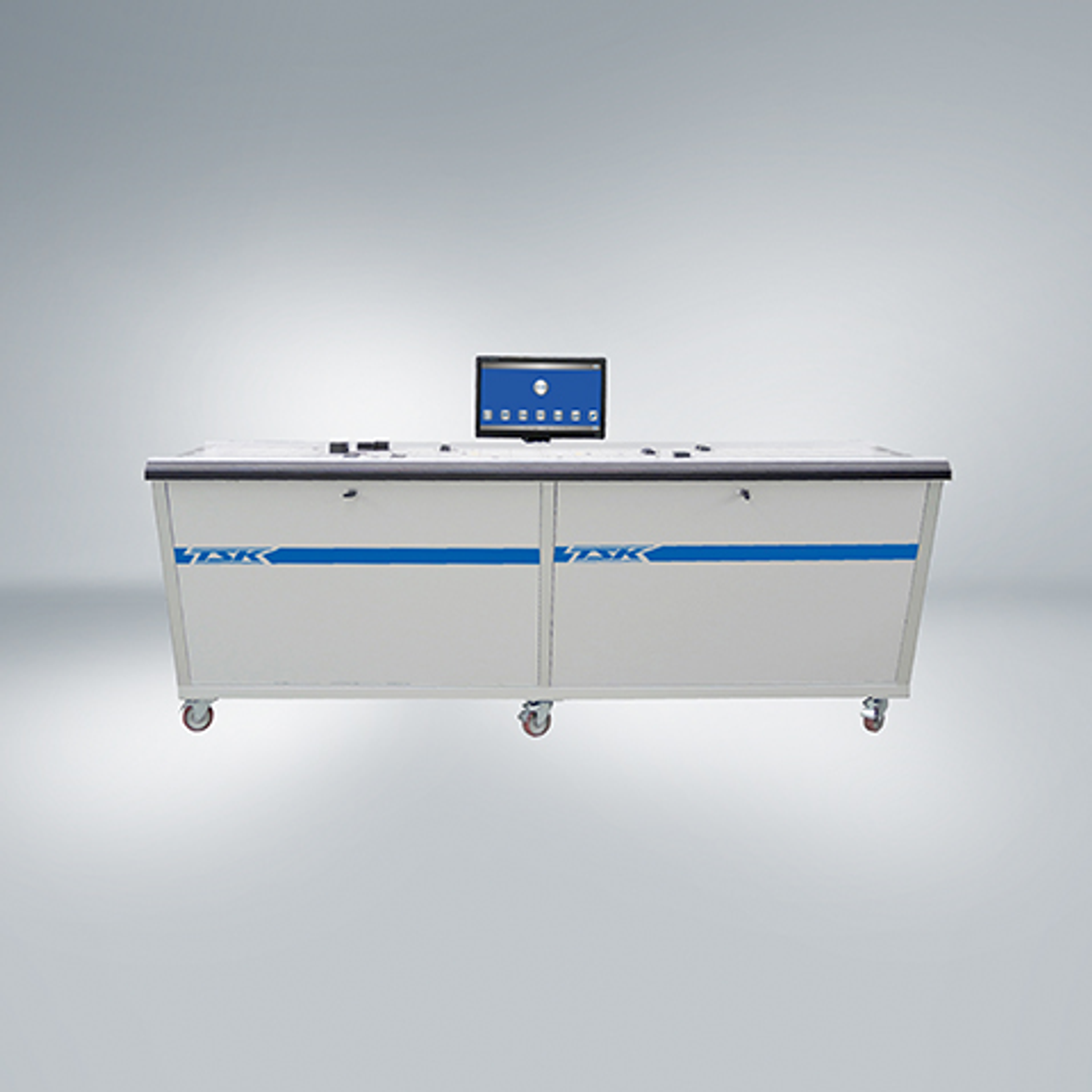

TS1500-ALU
The TS1500-ALU test system with its extra broad testing grid of up to 2000 mm and more width is suitable for testing and quality assurance of medium and large wire harnesses.
Technical data
9 Variants
| Specification name | Specification value |
|---|---|
| Dimensions/height min. | 1020 mm |
| Dimensions/height max. | 1070 mm |
| Dimensions/width min. | 1200 mm |
| Dimensions/width max. | 1460 mm |
| Depth max. | 700 mm |
| Total weight, without test adapter (modules) approx. | 100 kg |
