Wire Processing

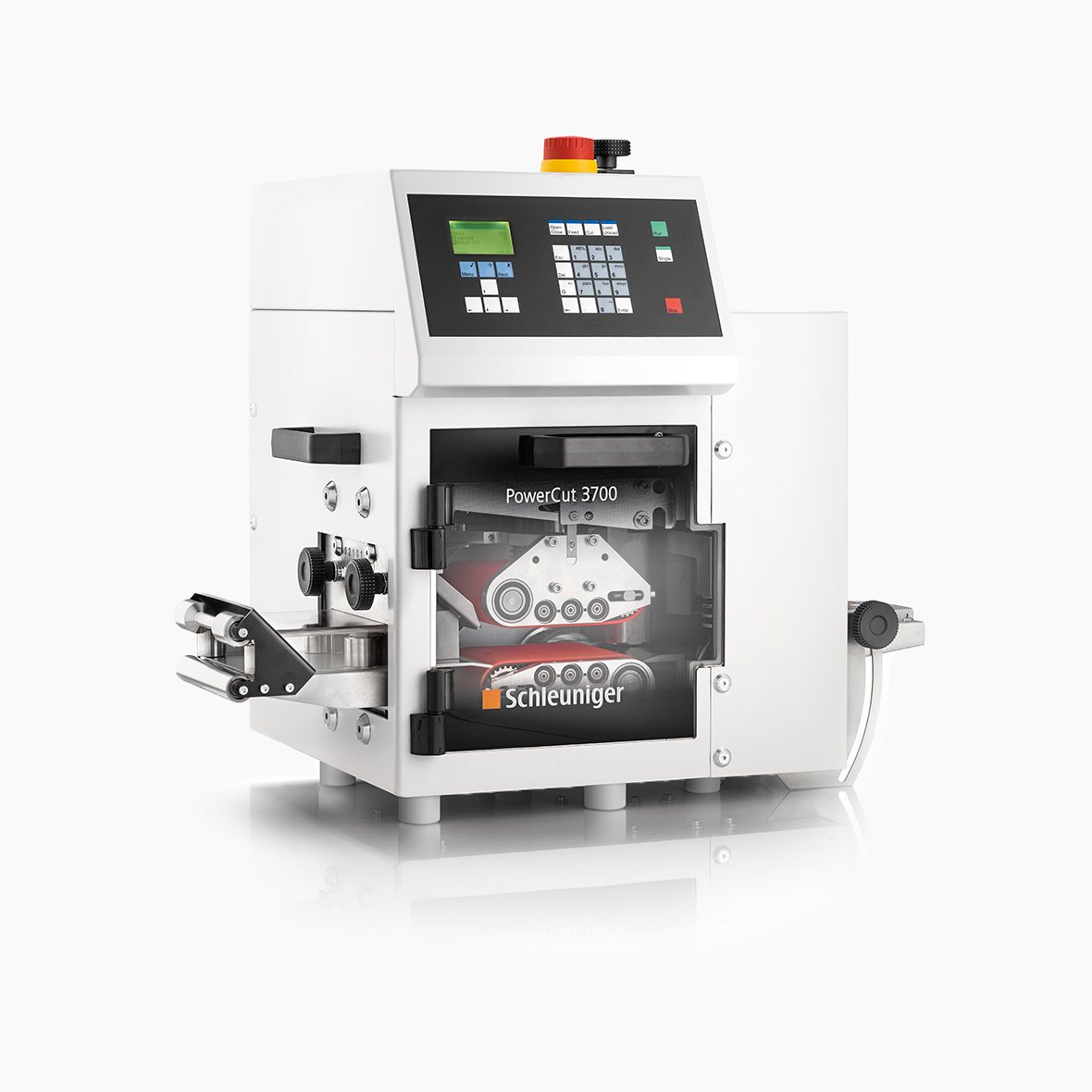

PowerCut 3700
The PowerCut 3700 cuts large wire, round and flat cable, Glass Optical Fiber, tubing material and foil with cross-section up to 70 mm² (AWG 2/0) and diameter up to 25 mm (0.98").
Highlights
Technical data
| Specification name | Specification value |
|---|---|
| Wire length/standard mode | 0.1 mm (0.004”) - 999‘999 mm (39,370“) |
| Wire outer diameter range | 0.0196 - 1 in |
| Interfaces | RS 232, foot pedal, standard prefeed and hotstamp Optional: PPI |
| Raw material diameter max. | 25 mm, tubes: 20 mm |
| CE conformity | The PowerCut 3700 fully complies with all CE and EMC equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
| Feed rate | 4.5 m/s |
Processing capabilities

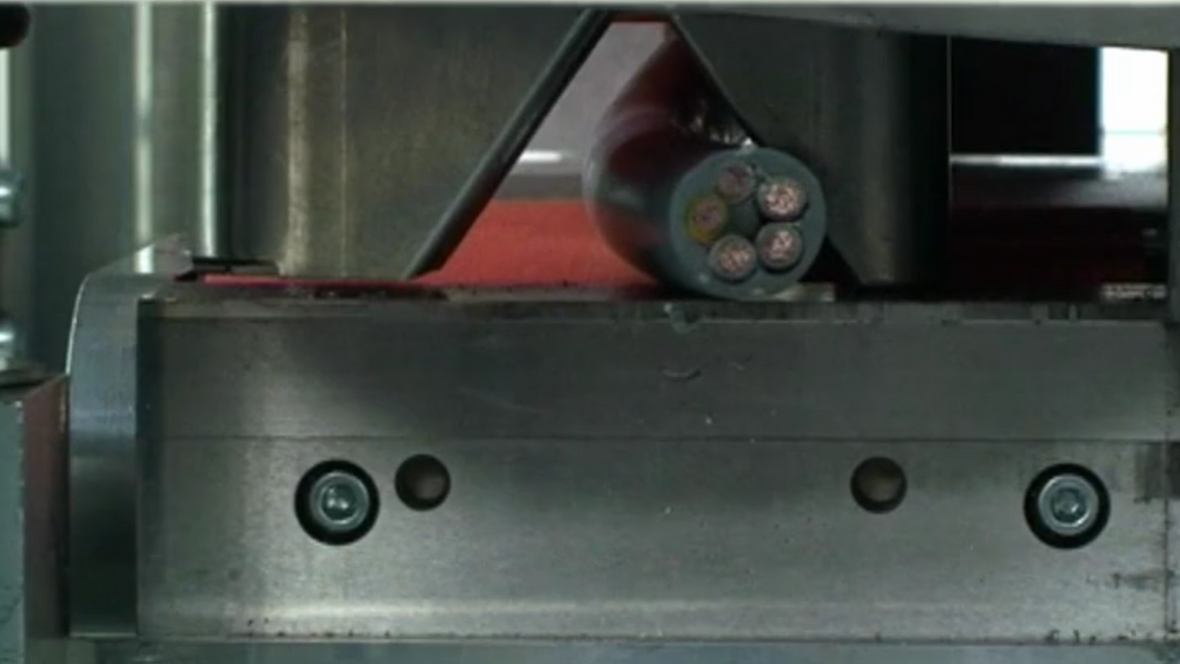

Cutting to length
Flat cable cutting to lenght
Marking
