Quick and Toolless Changeovers for Reduced Downtime

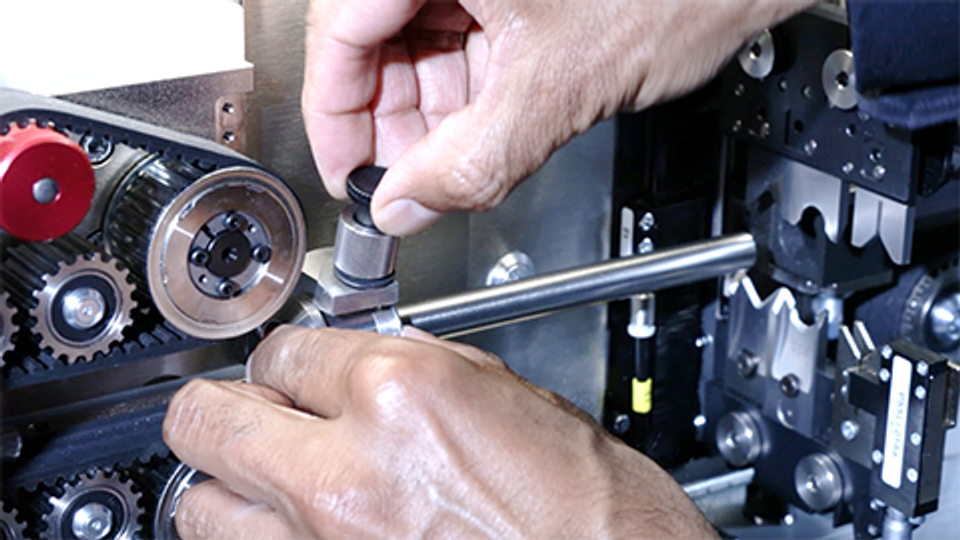

Entire blade cartridge sets can be changed within seconds thanks to the SmartBlade system. This process can even be done without any tools.
Wire Processing

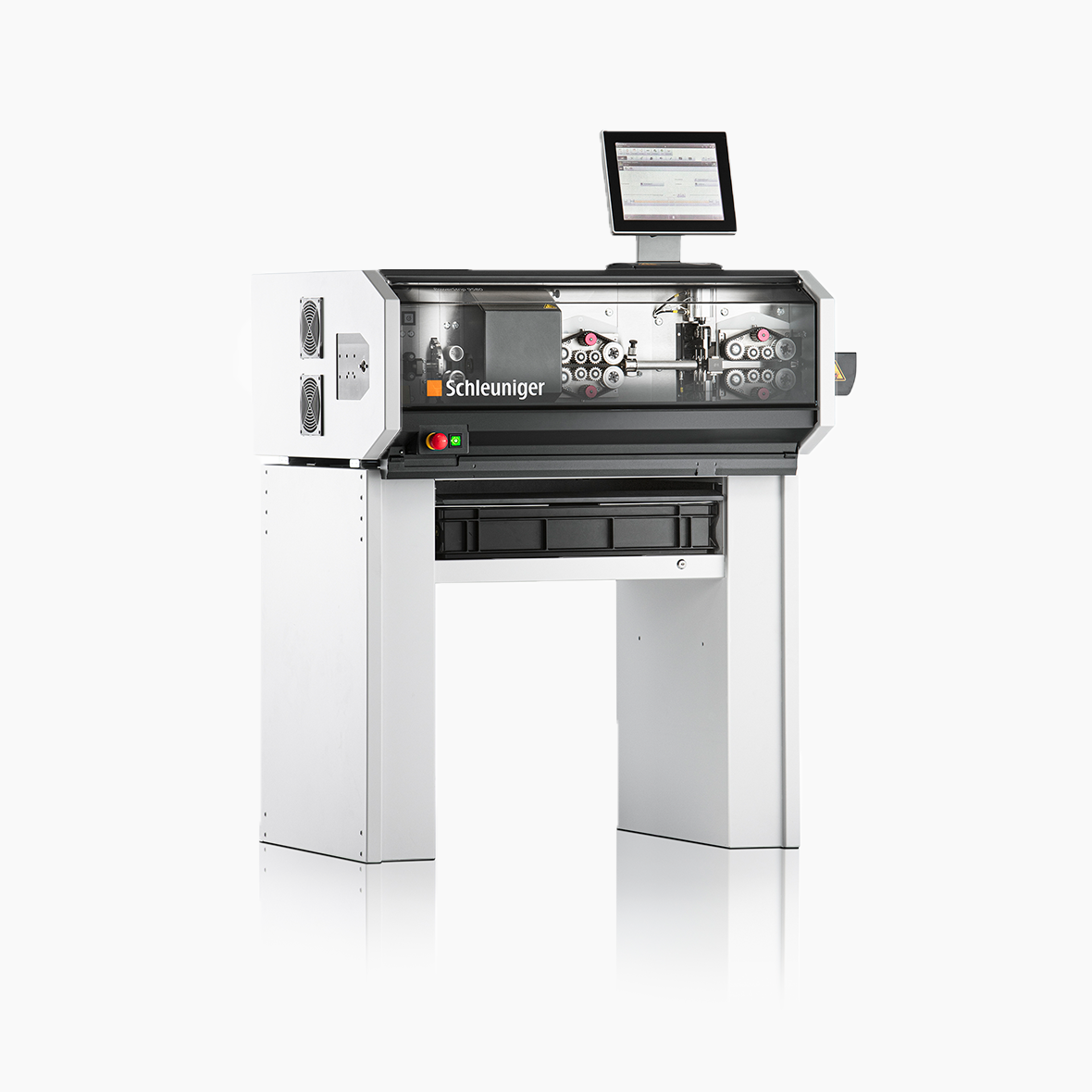

PowerStrip 9580
The modular PowerStrip 9580 processes a wide range of applications with wires of 0.5 – 16 mm (0.0196 – 0.63") in diameter and cross sections of 0.5 – 70 mm² (26 – 2/0 AWG).
Highlights
Quick Feed Rates Ensure High Production Output

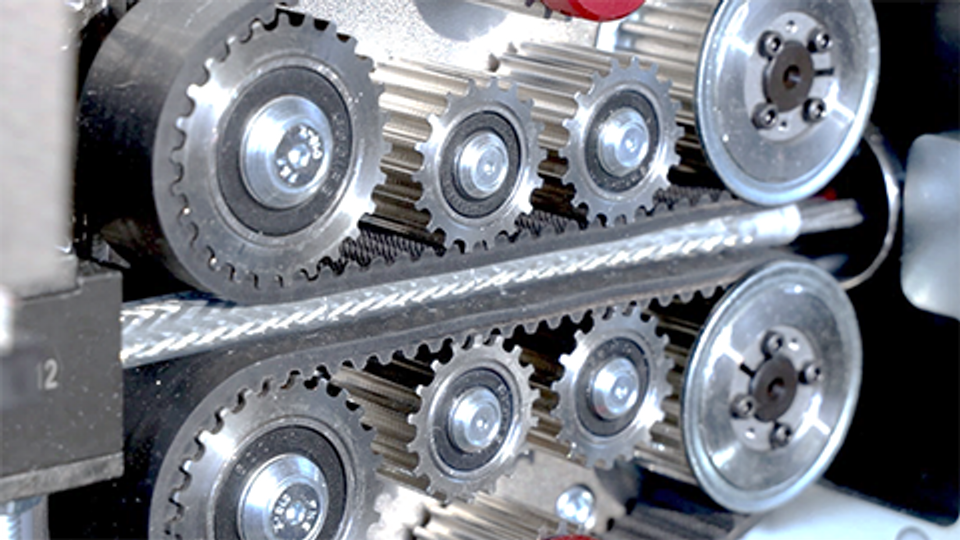

The powerful servomotors on the PowerStrip 9580 ensure quick feed rates with a transport speed of up to 4 m/sec and high pull-off forces.
Technical data
| Specification name | Specification value |
|---|---|
| Wire cross section | 0.5 - 70 mm² |
| Wire length/short mode | 38 mm (1.49”) - 1,000,000mm (39,370"), 38 mm (1.49”)measured on remaining insulation length |
| Wire length/standard mode | 74 mm – 1,000,000 mm (2.91" – 39,370") |
| Wire outer diameter range | 0.0196 - 0.63 in |
| SmartBlade blade cartridge | Number of blade sets: S/SR NA - M/MR 3 x 20 mm (0.79") at blade width: S/SR 1 x 20 mm (0.79") - M/MR 3 x 16 mm (0.63") |
| Interfaces | Standard: 3 x USB, 2 x Ethernet as well as prefeed, hotstamp and postfeed interfaces Optional: 5 additional SMIs (Schleuniger Machine Interface) for up to 2 marking systems, different peripheral devices and emergency stop circuits |
Processing capabilities
Cutting to length
Slitting
Full stripping
Partial stripping
Multistep stripping
Center stripping
