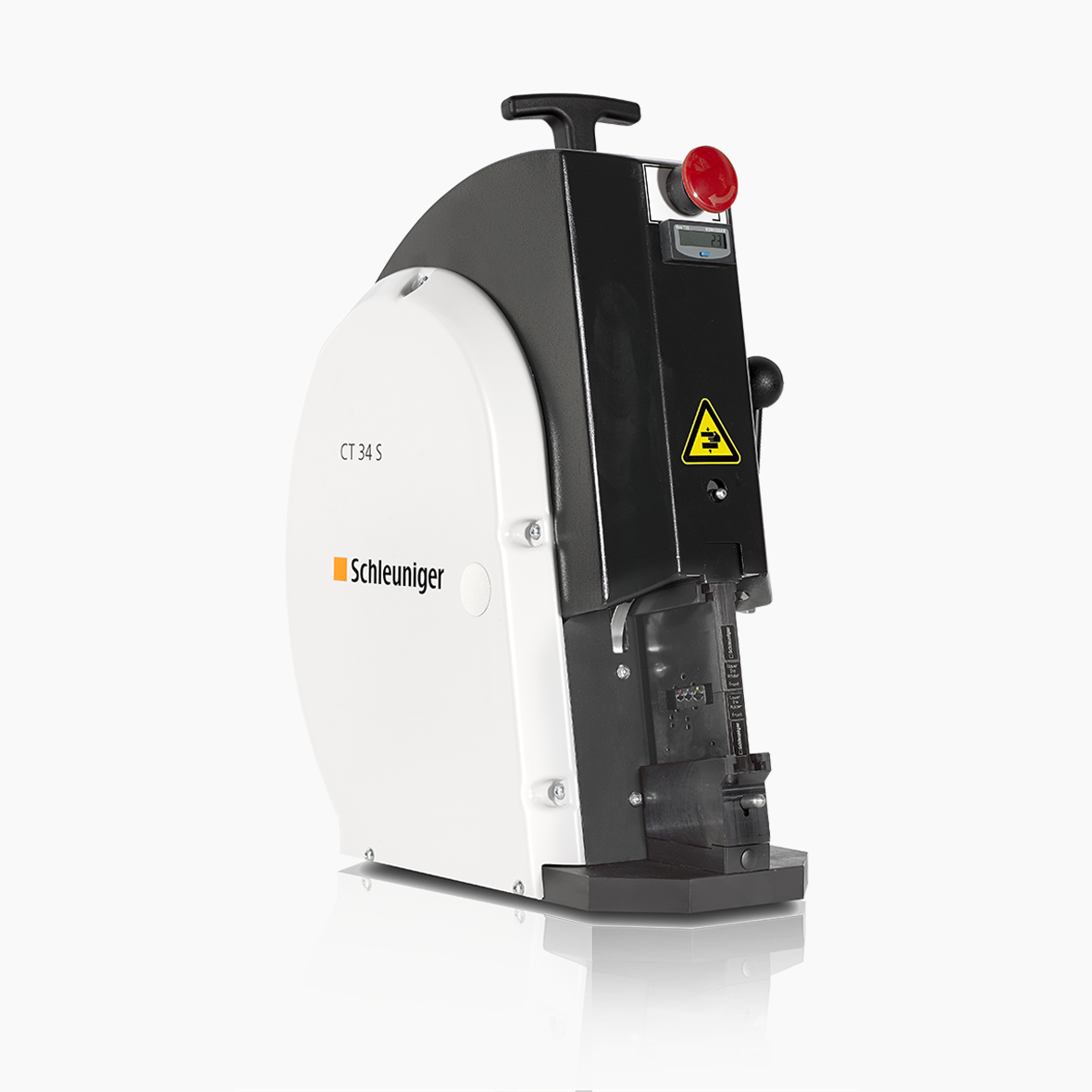

CT 34 S
The CT 34 S crimps loose-piece applications with up to 20 kN (2.5 tons) of force for open and closed barrel applications, including wire end ferrules up to 10 mm² (8 AWG).
Technical data
| Specification name | Specification value |
|---|---|
| Crimp action | Parallel |
| Activation | Foot pedal |
| Safety shield | Not required due to the additional safety feature that prevents the machine from cycling if the dies are opened more than 5.9 mm (0.23 in). |
| RAM speed | Approximately 1 cm/s (0.39 inch/s) |
| Wire cross section, wire end ferrules max. | 10 mm² |
| RoHS | The CT 34 S complies with the EU guideline 2002/95/EG (RoHS). |
