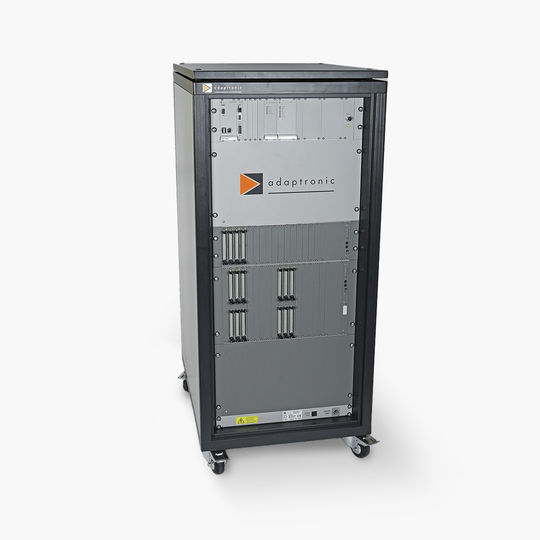

NT 700-5
The NT 700-5 high-voltage wiring tester is specially designed for testing HV wiring harnesses in electric vehicles in accordance with the LV123 testing standard.
Technical data
| Specification name | Specification value |
|---|---|
| High voltage test (AC) max. | 5000 V |
| Test current (AC) min. | 30 mA |
| Control software | NT Control |
| Test of other components | Diodes, LEDs, Zener diodes, varistors, surge arresters |
| Interfaces | Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator |
| Dimensions/height | 1355 mm |
