KT 651

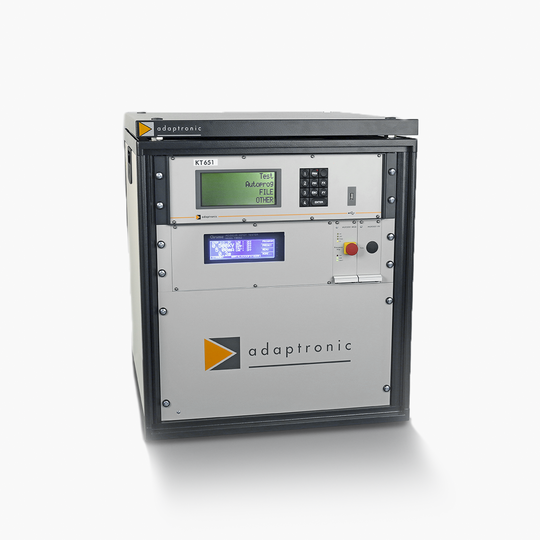

The KT 651 high-voltage wiring tester tests the voltage resistance up to 5000 VAC/6000 VDC and optionally high current up to 2 ADC at 64 test points.
Technical data
| Specification name | Specification value |
|---|---|
| High voltage test (AC) max. | 5000 V |
| Test current (AC) min. | 30 mA |
| Test of other components | Diodes, LEDs, Zener diodes, varistors, surge arresters |
| Interfaces | Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator |
| Dimensions/height | 650 mm |
| Width | 555 mm |
