MicroForce 80

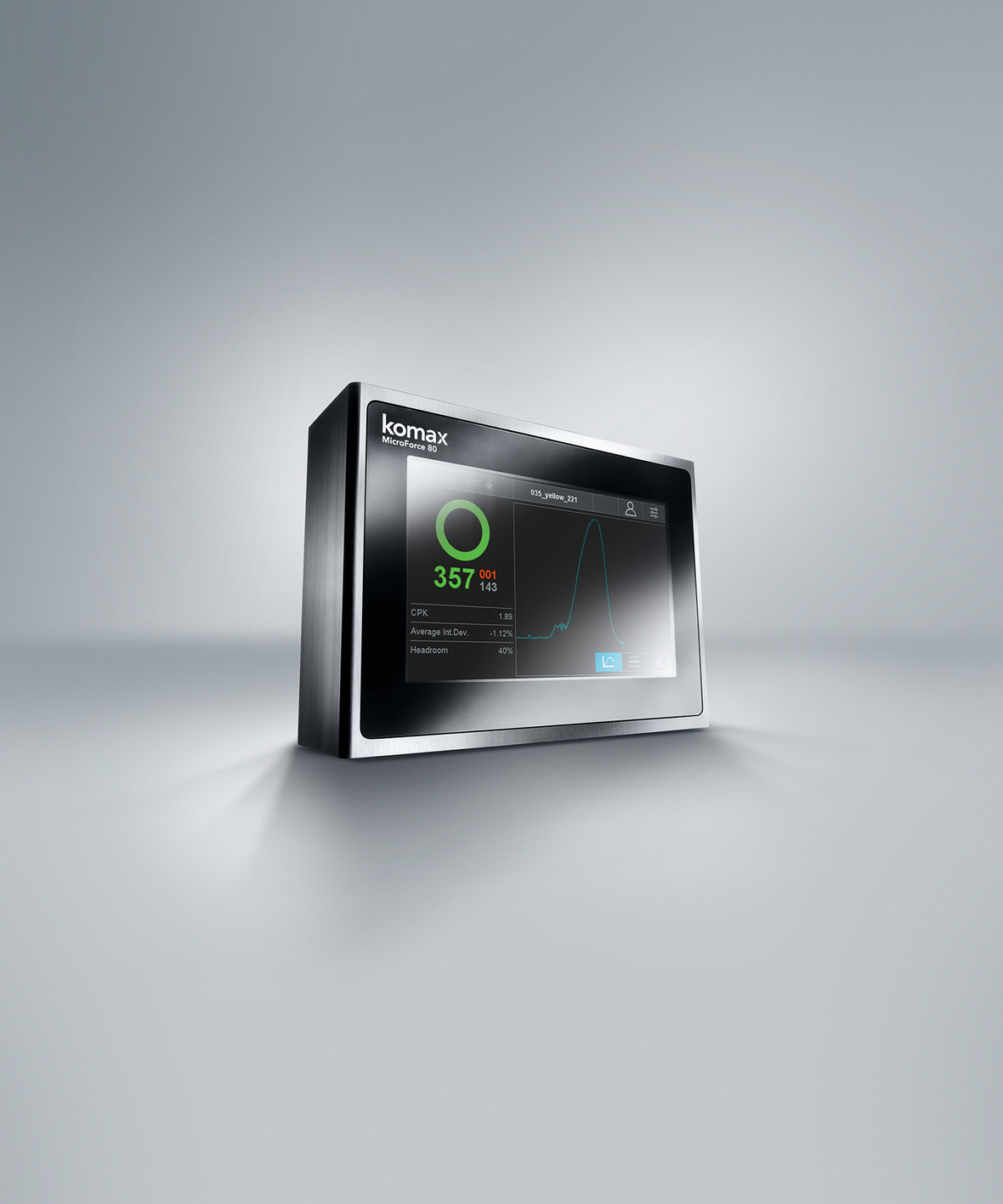

The Microforce 80 for efficient crimp force monitoring on fully-automatic wire processing machines enables detailed analysis and documentation on the 5.0 inch touchscreen.
Easy mounting of the sensor thanks to the fastening screw
Predefined content access by user
Access to the key functions can be protected with a password and predefined users. This makes the Microforce crimp force measurement module secure in the application.
Short changeover times thanks to article storage
The stored article data reduce the changeover time: Parameters such as tolerance, batch size, number of teach-in crimps, evaluation range, wire type and terminal type can be accessed at any time.
Clear monitoring and control of the crimp force curve
The result of the crimping process is electronically stored, evaluated in the integrated software and displayed on a large 5-inch display for analysis.
| Specification name | Specification value |
|---|---|
| Electrical connection | 24 V DC, 1 A |
| Dimensions/length | 142 mm |
| Dimensions/width | 46 mm |
| Weight | 2 kg |
| Air humidity max. | 90 % |
| Temperature operation | 5-45 °C |
