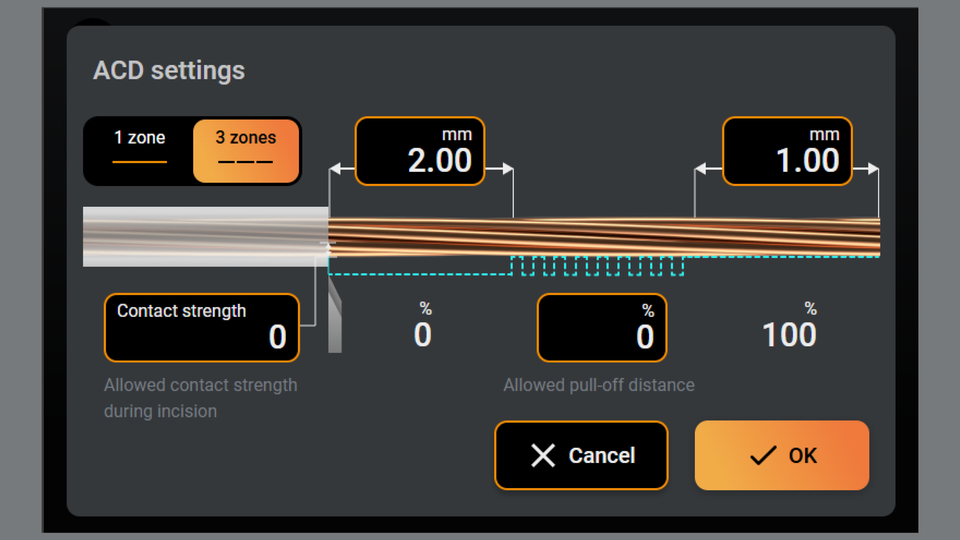

High-Resolution Touchscreen with Concise User Interface
All relevant information is displayed in a large format and clearly distinguished by color. The most frequently used functions are visualized for easy guidance.
Wire Processing
Strip Series B300
The portable B300 stripping machine reliably strips cables with cross sections from 0.03 to 8 mm² (32 to 8 AWG) and up to 7 mm (0.27") outer diameter.
Highlights
High flexibility with additional clamp jaws
The narrow 1.8 mm clamping jaws and various surface options (cross-hatch and diamond) enable the processing of a wide range of cables. Cable-specific jaws are available on request.
Simple Conductor Processing in Only 35 Clicks
Programming multiconductor cables is fast and easy with the B300. It takes about 35 clicks to program a multicore cable—compared to approximately 130 clicks on the UniStrip 2300.
Technical data
| Specification name | Specification value |
|---|---|
| Options | Foot pedal, Automation Interface, Software Upgrade |
| Wire outer diameter min. | 0.001 in |
| Wire outer diameter max. | 0.28 in |
| Insertion depth with optional thin grippers min. | 0.236 in |
| Number of entries in the article library | virtually unlimited |
| Strip length min. | 0.004 in |
Processing capabilities
Cutting to length
Full stripping
Partial stripping
Multistep stripping
Multicore cable processing
