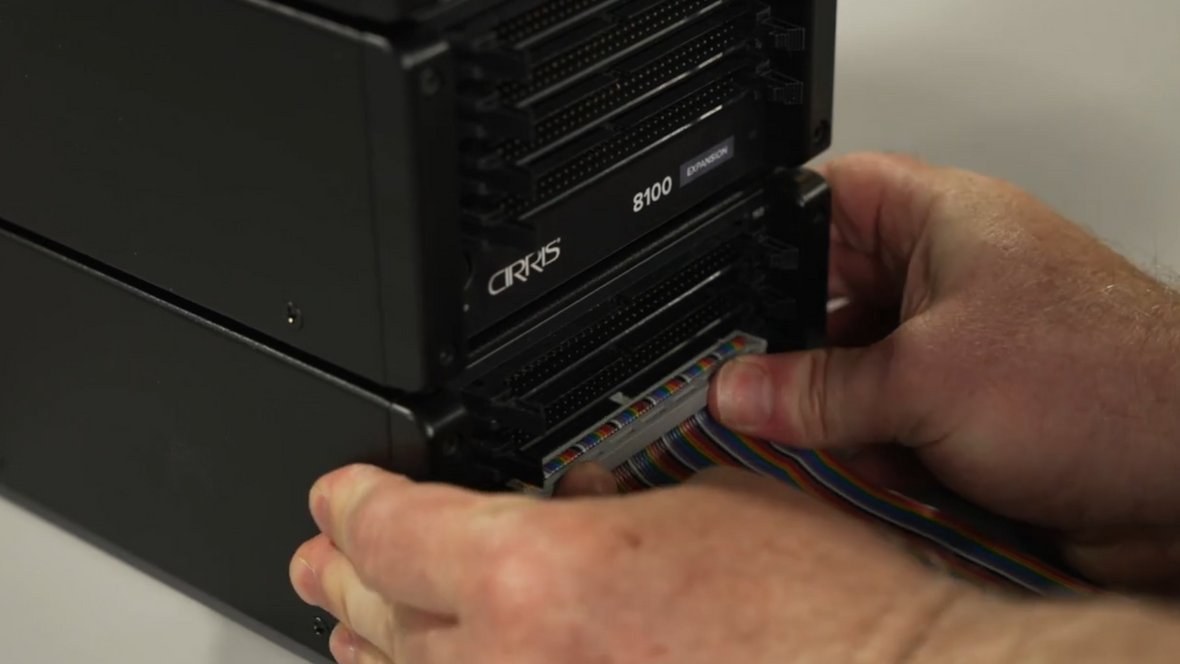

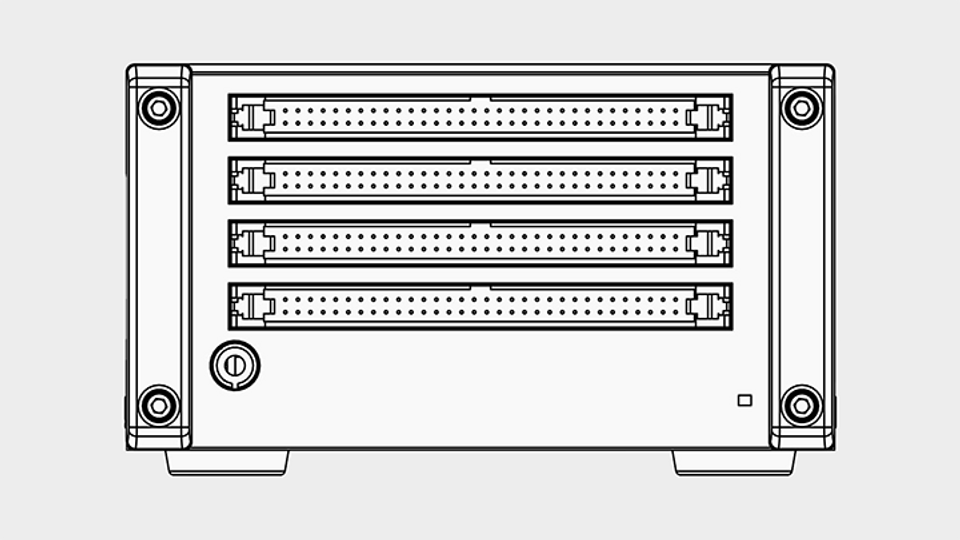

Compact Unit with Optional Expansions
The Cirris 8100 comes with standard 256 test points and is expandable to 100,000 points. Its small size makes it nonintrusive and easy to distribute around a larger device.
Testing & Quality Tools

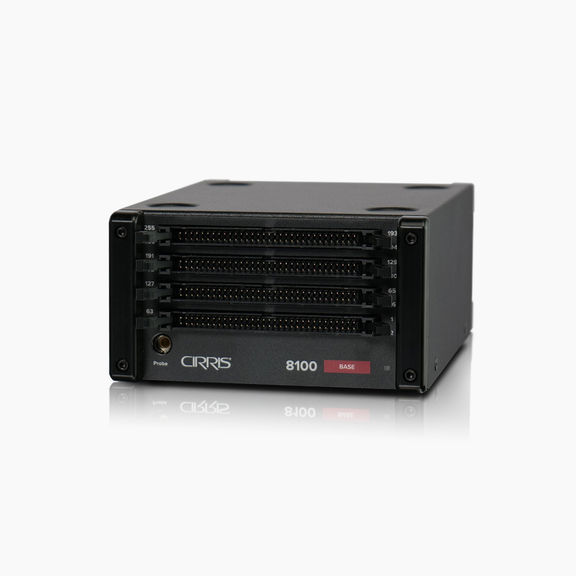

8100
With a compact and rugged design, the low-voltage tester Cirris 8100 supports up to 100,000 test points and tests complex wire assemblies as part of your production process.
Highlights

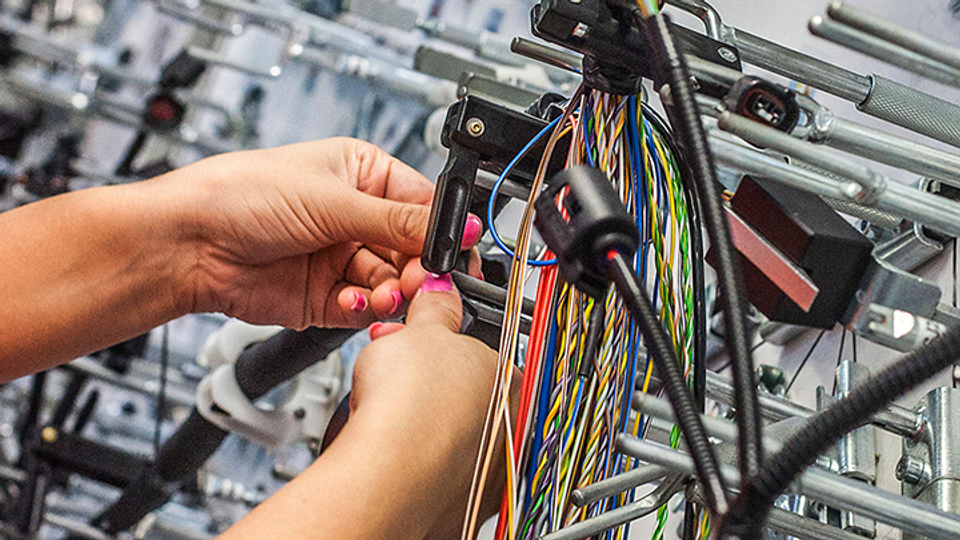

Wide Range of Testing Capabilities
The harness tester supports flexible test assemblies and custom measurements , e.g. higher accuracy 4-wire Kelvin resistance, with components such as resistors, diodes, capacitors.

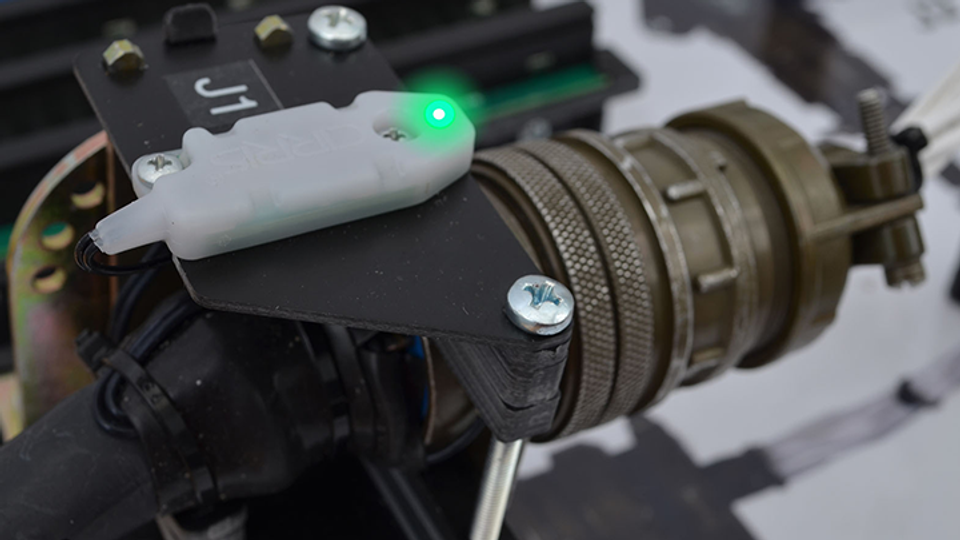

Easy and Thought-Through Operator Guidance
Graphical representations with visual and audio operator prompts simplify the build process and troubleshooting. The unit is also compatible with Cirris Smart-Lights®.

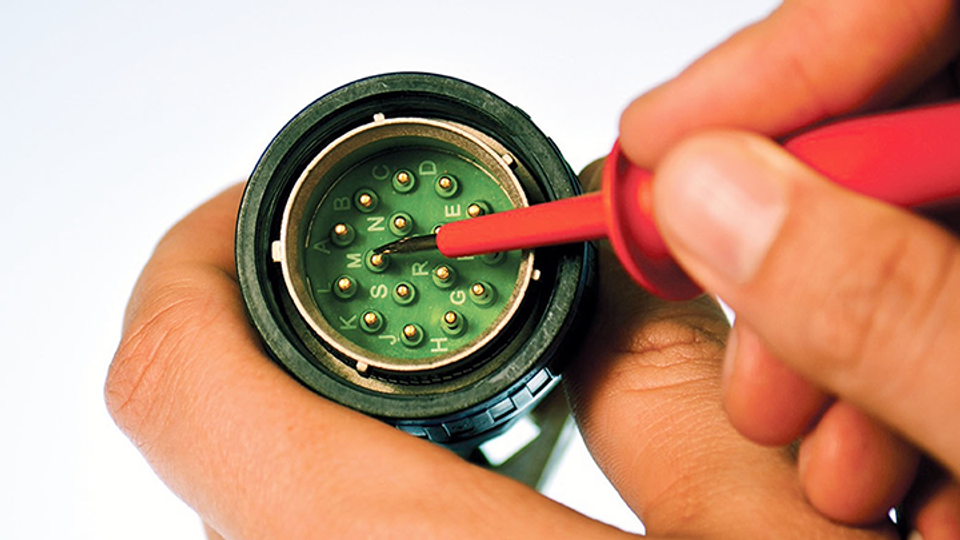

Resistance And Touch Probing
Probes can be used to identify points and make resistance measurements. Wrist straps allow finger-touch identification of test points.
Portability Option
Technical data
| Specification name | Specification value |
|---|---|
| 2-wire, insulation resistance max. | 3 MΩ |
| 2-wire, resistance accuracy ± | 2 % |
| 2-wire, resistance accuracy resolution | 0.1 Ω |
| 4-wire, resistance accuracy resolution | 0.005 Ω |
| 4-wire, resistance max. | 100 Ω |
| 4-wire, resistance accuracy ± | 2 % |
