Fast, Intuitive Testing
Innovative technology and efficient algorithms reduce time spent on testing. No advanced skills or training are necessary to begin testing.

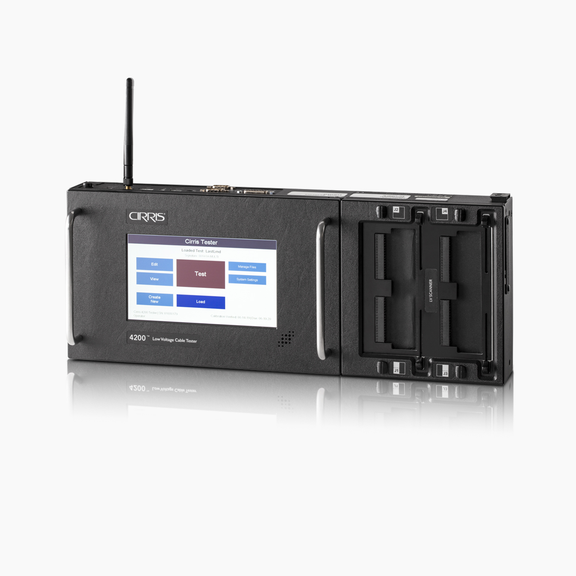

LV Cable & Harness Tester
4200
The low-voltage cable tester Cirris 4200 ensures precise detection of opens, shorts, miswires, and other errors, starting with 128 test points and expandable to 1024.
Highlights
Compact And Expandable Design
The lightweight, and self-contained unit for easy movement around production floor offers optional expansion boxes which create up to 1024 test points (128 points per box).
Thorough Testing and Quality Control
The 4200 tests for continuity, isolation, opens, and miswires and analyzes components such as resistors, diodes, capacitors, and performs 4-wire Kelvin resistance measurements.
Cirris Adapter System for Expanded Testing
Optional expansion boxes in 128 point increments offer further testing capabilities which test with up to a maximum of 1024 test points per station.

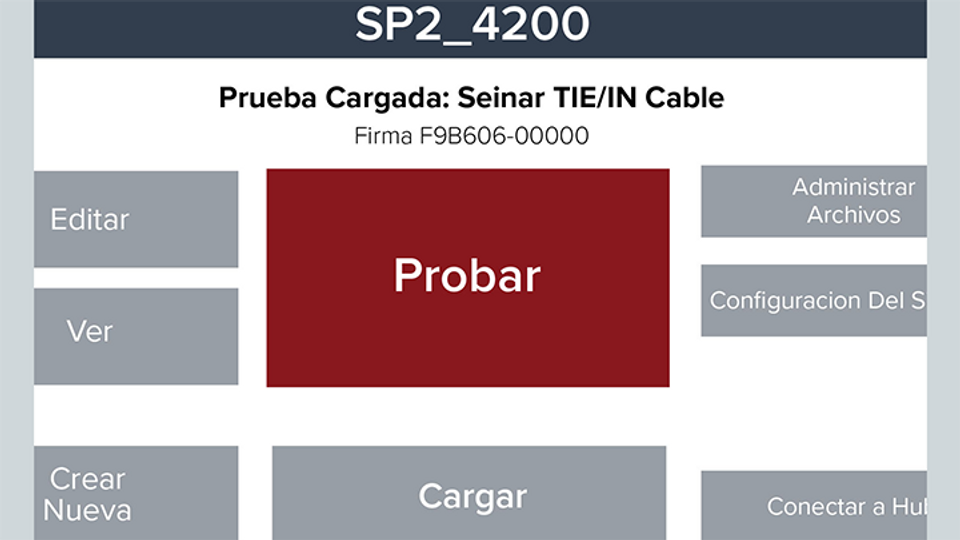

Multilingual Interface
The intuitive interface is translated into several languages to avoid mistakes caused by language barriers.
Technical data
| Specification name | Specification value |
|---|---|
| 2-wire, resistance extended accuracy ± | 10 % |
| 2-wire, resistance extended min. | 100 kΩ |
| 2-wire, resistance extended max. | 5 MΩ |
| 2-wire, resistance accuracy ± | 1 % |
| 2-wire, resistance accuracy resolution | 0.1 Ω |
| 4-wire, resistance accuracy resolution | 0.005 Ω |
