Patented test method
Vacuum technology enables dielectric strength testing of unshielded high-voltage wire harnesses. Thanks to the vacuum chamber, no other liquids or gasses are required.
Testing & Quality Tools
TD1200-VTS

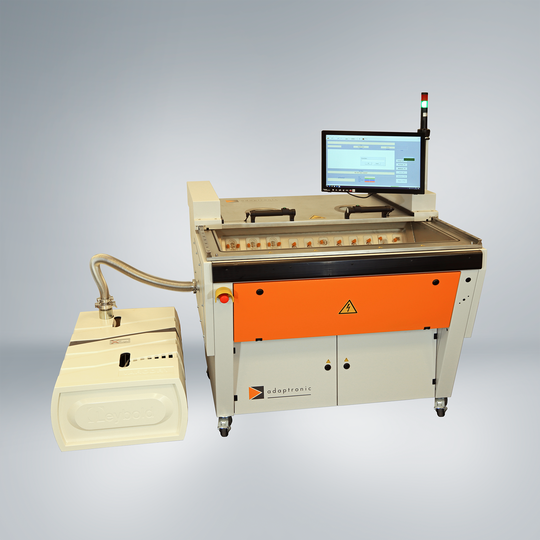

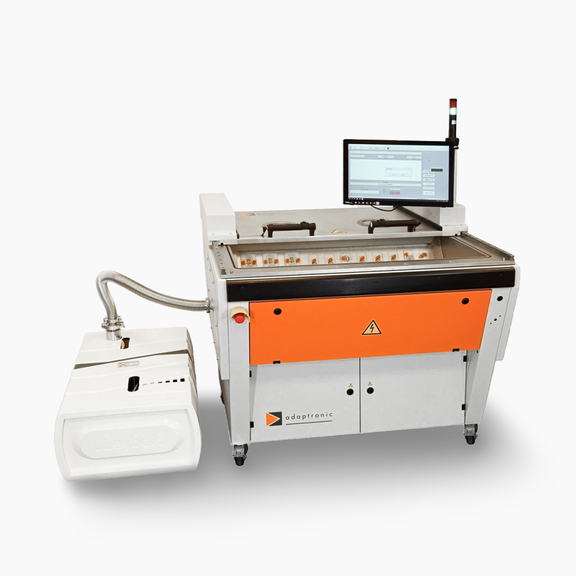

The TD1200-VTS vacuum test system is a test bench with a vacuum chamber and sealed adapters, which make it particularly suitable for voltage tests on unshielded cable harnesses.
Highlights

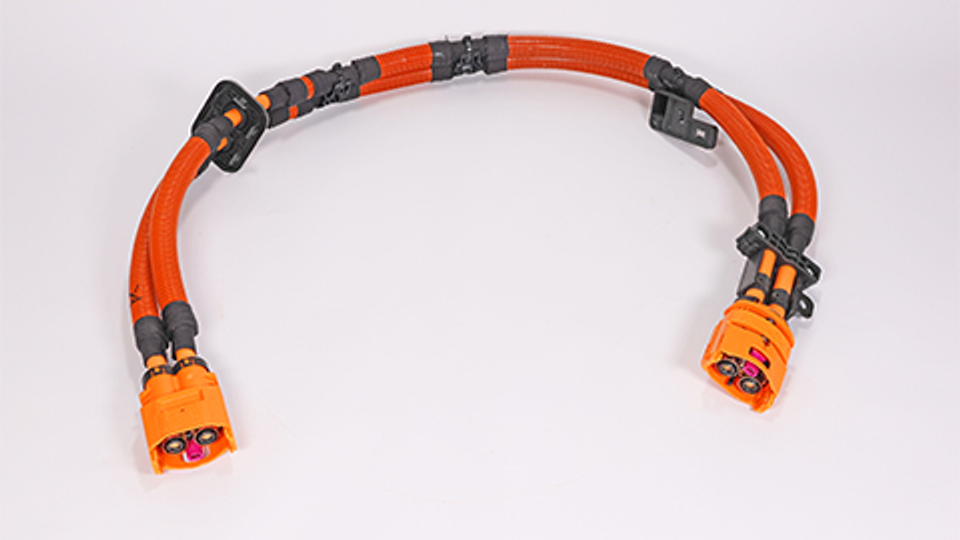

Versatile application options
The T1200-VTS is designed for complex, three-dimensional wire harnesses. Testing with additionally mounted components such as clips, cable ducts, or tapes is also possible.
For Industry 4.0
The vacuum test bench is optimally prepared for integration into modern production environments and MES with standardized interfaces such as the OPC UA software.

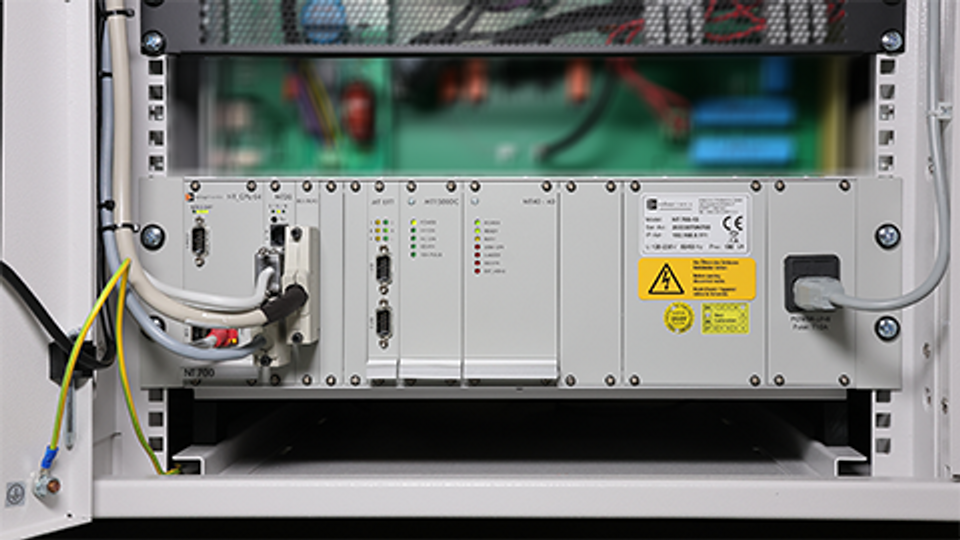

Maintenance-friendly design and space-saving integration
The built-in wiring tester saves valuable space in production. All components are clearly arranged and easy to maintain.
Technical data
| Specification name | Specification value |
|---|---|
| Dimensions/depth min. | 42.91 in |
| Voltage (AC), input min. | 400 V |
| Voltage (AC), input max. | 400 V |
| Voltage, input (AC) | 400 V |
| Frequency, input min. | 50 Hz |
| Frequency, input max. | 50 Hz |
