Wire Processing

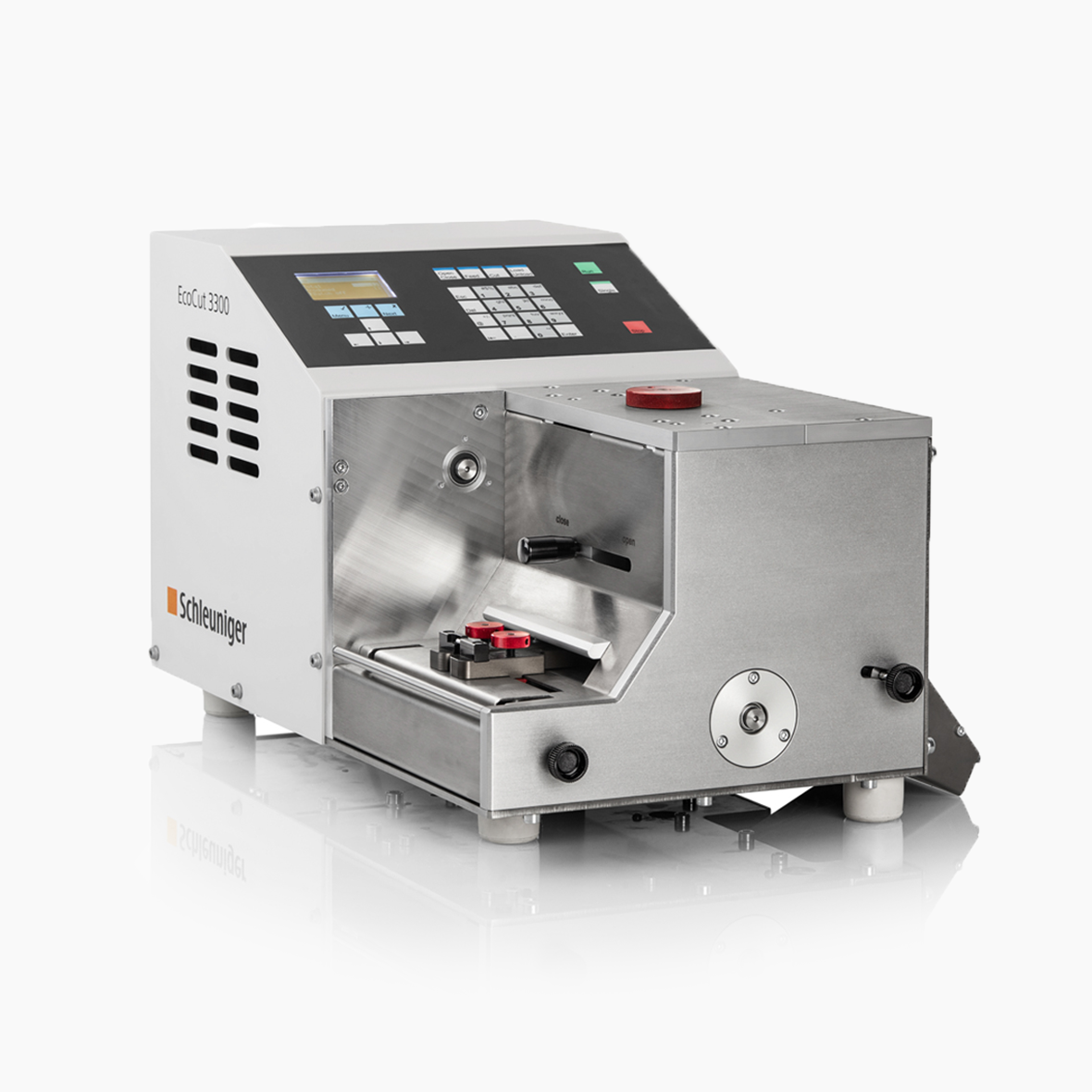

EcoCut 3300
The cutting machine EcoCut 3300 processes wire, cable, tubing, and ribbon up to 16 mm² (6 AWG), cuts round material up to 12 mm (0.47"), and flat material up to 100 mm (3.94").
Highlights
Technical data
| Specification name | Specification value |
|---|---|
| Wire length/standard mode | 0.1 mm (0.004”) - 999‘999 mm (39,370“) |
| Wire outer diameter range | 0.032 - 0.47 in |
| Conductor cross section | Stranded Wire Max. 16 mm² (6 AWG) Solid Wire Max. 6 mm² (10 AWG) |
| Options | Air Jet Kit, Carbide Blades, Quadruple Cable Guides, Special Cable Guides |
| Interfaces | Standard: Prefeeder, Hotstamp, RS232, Foot pedal Optional: Post-feed interface (CableCoiler 500, CableCoiler 1450 and inkjet) |
| Raw material diameter max. | 12 mm |
Processing capabilities
Cutting to length

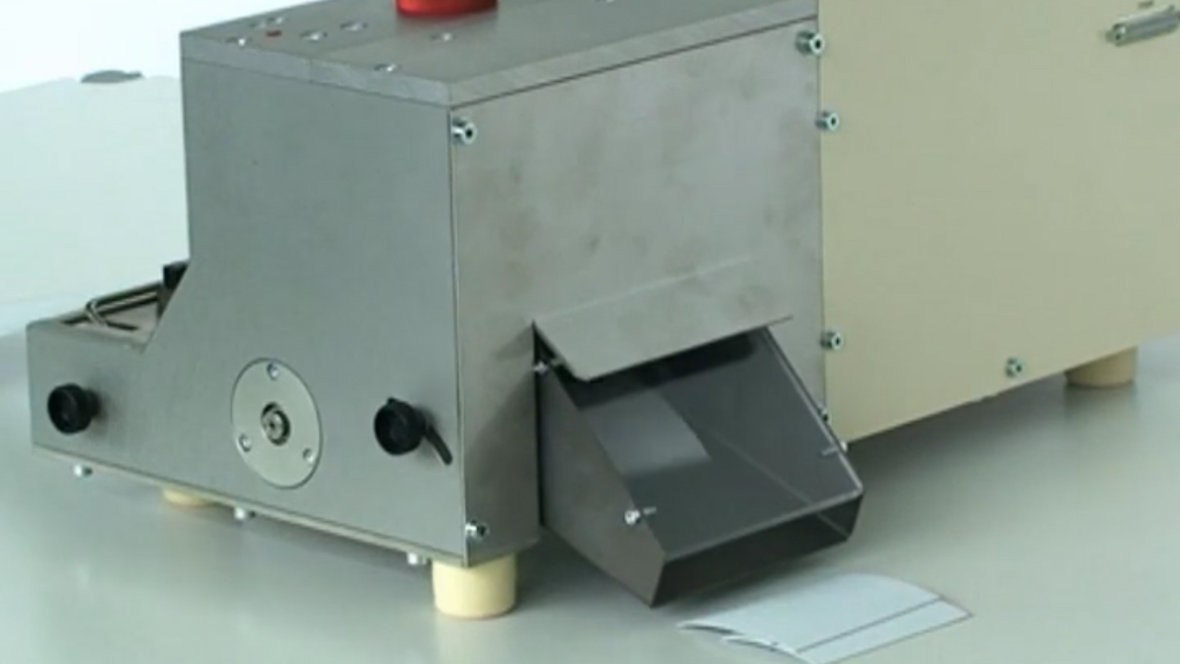

Flat cable cutting to lenght
Marking
