Quality control with optional incision monitoring (ACD)

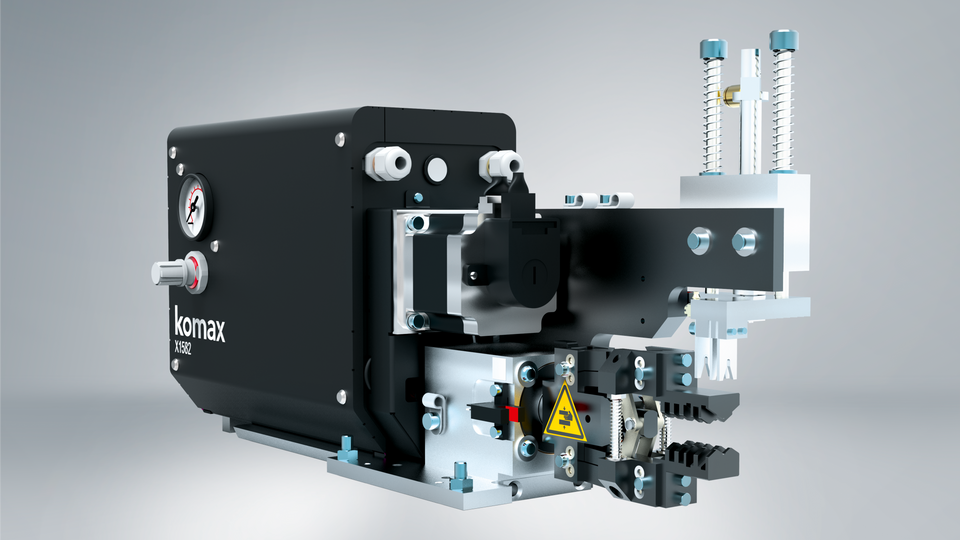

Three pairs of blades strip wires of 0.13 – 1.5 mm² (AWG 26 – 16). The optional ACD incision monitoring detects the slightest contact between the blade and conductor strands.
Wire Processing
Omega 750 SA

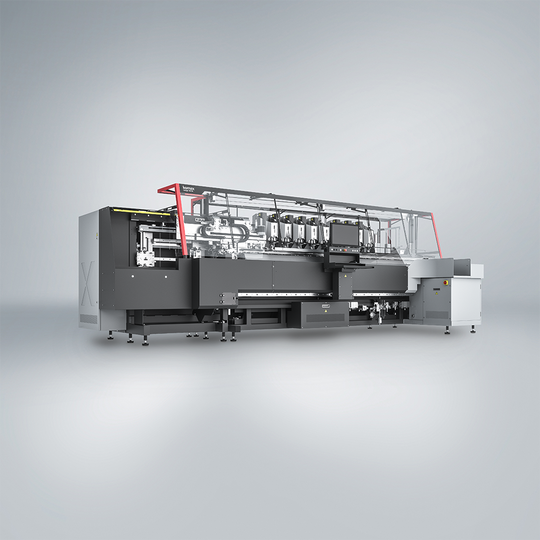

The Omega 750 SA cable assembly machine produces wire harnesses of varying degrees of complexity and allows for terminal housings to be loaded on one side or both sides.
Highlights
Two speedy insertion gripper for long and short wires
The two automatic insertion gripper positions the wire precisely, monitors the loading force during the entire process and checks that the terminal locking is correct.

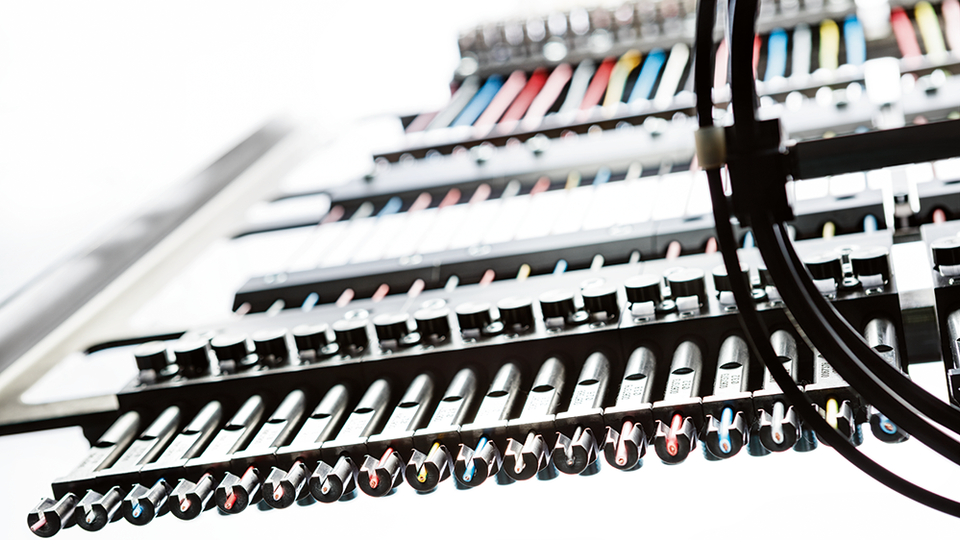

Wire changer for up to 36 wire types
The expandable wire changer holds up to 36 different wires from the entire cross-section range ready for processing to ensure quick turnaround.
Special untwisting module for neutralizing twisted wires
Unwound wires always have a twist. The untwisting module removes the twist from the wires, which is important for subsequent fully automatic loading.
Automatic production of complex wire harnesses
With the wire storage system and a large pallet with mounting fixtures, double-sided wire harnesses with a high degree of complexity can easily be produced.
Technical data
| Specification name | Specification value |
|---|---|
| Shortest wire length for one-sided processing | 240 mm |
| Shortest wire length for two-sided processing | 240 mm |
| Shortest wire length, double-sided jumper connection | 240 mm |
| Shortest wire length, double-sided jumper connection max. | 540 mm |
| Shortest wire length, complex loading min. | 300 mm |
| Shortest wire length, complex loading max. | 800 mm |
